Land Rover Defender: Rear View Mirrors - Control Diagram

Land Rover Defender 2020-2026 Service Manual / Body and Paint / Rear View Mirrors / Rear View Mirrors - Control Diagram

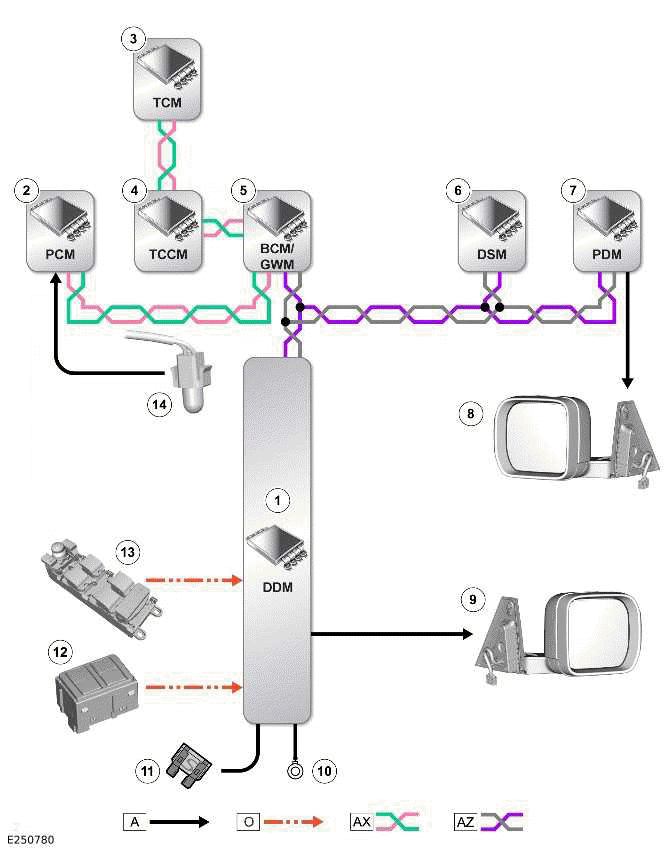

CONTROL DIAGRAM - 1 OF 3 - DOOR MIRRORS

Rocker Panel

A = HARDWIRED: O = LIN: AX = FLEXRAY: AZ = HS CAN BODY SYSTEMS BUS.

  1. DDM
  2. PCM
  3. TCM
  4. Transfer Case Control Module (TCCM)
  5. BCM/ GWM
  6. DSM
  7. PDM
  8. Passenger door mirror
  9. Driver door mirror
  10. Ground
  11. Power supply
  12. Seat memory switchpack
  13. Driver door switchpack
  14. AAT sensor

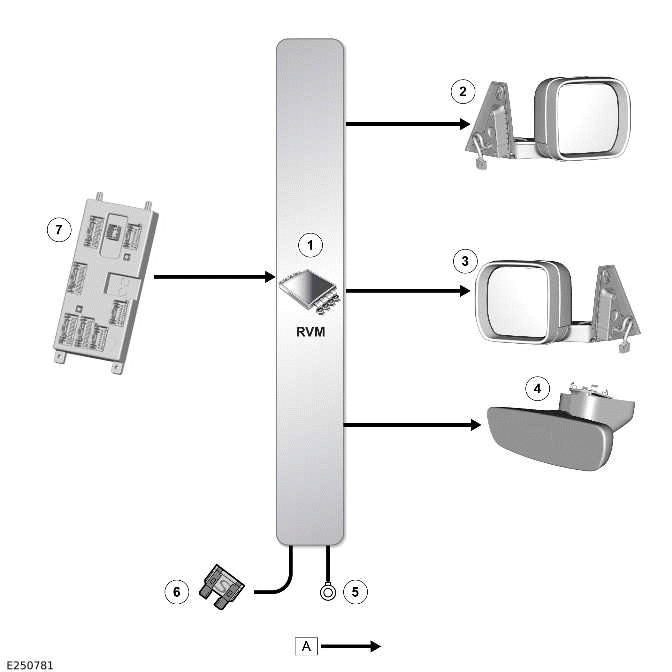

CONTROL DIAGRAM - 2 OF 3 - DIMMING

Rocker Panel

A = HARDWIRED.

  1. RVM or clear sight RVM (if equipped)
  2. Driver door mirror
  3. Passenger door mirror
  4. RVM glass
  5. Ground
  6. Power supply
  7. BCM/ GWM

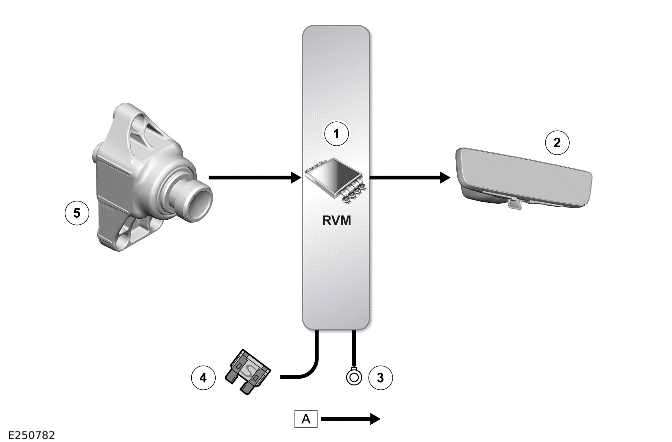

CONTROL DIAGRAM - 3 OF 3 - CLEAR SIGHT RVM CAMERA

Rocker Panel

A = HARDWIRED.

  1. Clear sight RVM
  2. Clear sight RVM LCD
  3. Ground
  4. Power supply
  5. Clear sight RVM camera
