Land Rover Defender: Door Mirror Cover
Land Rover Defender 2020-2025 Service Manual / Body and Paint / Rear View Mirrors / Door Mirror Cover
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right side components are similar.
1. Remove the door mirror glass.
2.
CAUTION:
- Take extra care not to damage the clips.
- Protect the surrounding trim to avoid damage.
- Take extra care not to damage the wiring harnesses.
.png)

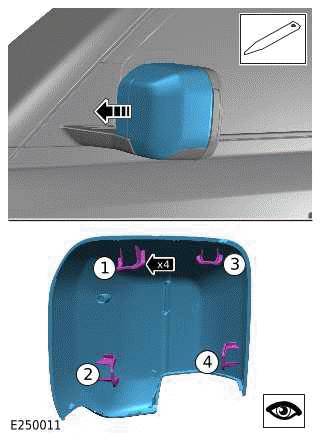

- Release the 4 clips in the sequence shown in the illustration.
- Remove the door mirror cover.
INSTALLATION
1.
CAUTION:
- Take extra care not to damage the clips.
- Protect the surrounding trim to avoid damage.
- Install the door mirror cover.
- Make sure the 4 clips are correctly installed.
2. Install the door mirror glass.
