Land Rover Defender: Rear Tweeter Speaker - 90
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains illustrations for the left side components,
right side components are similar.
1. Remove the B-pillar upper trim panel.

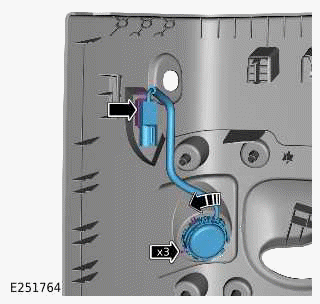

2.
.png)
- Release the electrical connector from the clip.
- Remove the rear tweeter speaker.
INSTALLATION
1.
- Install the rear tweeter speaker.
- Install the electrical connector into the clip.
2. Install the B-pillar upper trim panel.
