Land Rover Defender: Subwoofer
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Remove the left front row seat.
2. Remove the left front treadplate trim.

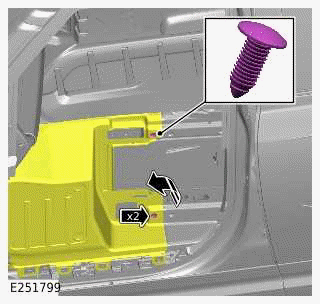

3.
.png)
- Remove the 2 clips.
- Reposition the front floor carpet front section away from the floor
carpet rear section.

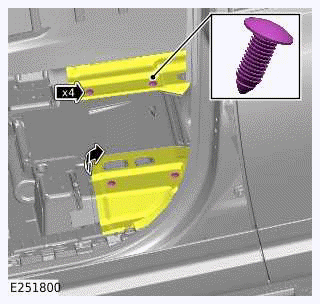

4.
.png)
- Remove the 4 clips.
- Reposition the rear floor carpet rear section away from the air vent.

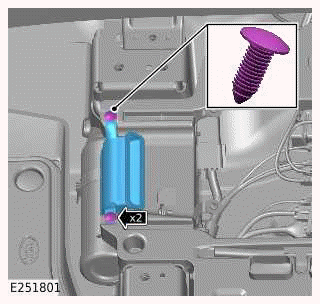

5.
.png)
- Remove the 2 clips.
- Remove the air vent.

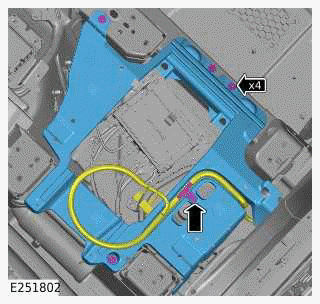

6.
.png)
- Remove the wiring harness clip.
- Reposition the wiring harness away from the bracket.
- Remove the 4 bolts.
- Remove the bracket.

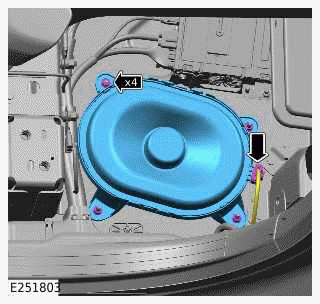

7.
.png)
- Disconnect the electrical connector.
- Remove the 4 nuts.
- Remove the subwoofer speaker.
INSTALLATION
1.
- Install the subwoofer speaker.
- Install and tighten the 4 nuts.
Torque: 7Nm
- Connect the electrical connector.
2.
- Install the bracket.
- Install the wiring harness to the bracket.
- Install and tighten the 4 bolts.
Torque: 5Nm
3.
- Install the air vent.
- Install the 2 clips.
4.
- Reposition the rear floor carpet to the original position.
- Install the 4 clips.
5.
- Reposition the front floor carpet to the original position.
- Install the 2 clips.
6. Install the left front treadplate trim.
7. Install the left front row seat.
