Land Rover Defender: Rear Stabilizer Bar
Land Rover Defender 2020-2026 Service Manual / Chassis / Suspension / Rear Suspension / Rear Stabilizer Bar
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
PART(S)
.png)
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Remove the rear wheels and tires.
3.
.png)

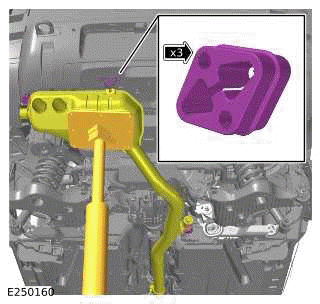

- Use a suitable transmission jack to support the exhaust system.
General Equipment: Transmission jack
- Release the exhaust system at the 3 mounting rubbers.
4.
.png)

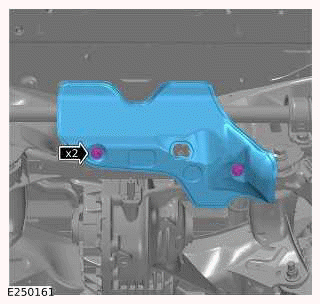

- Remove the 2 bolts.
- Remove the heatshield.
5.
CAUTION: Use a wrench on the hexagon provided to prevent the ball joint rotating.
.png)

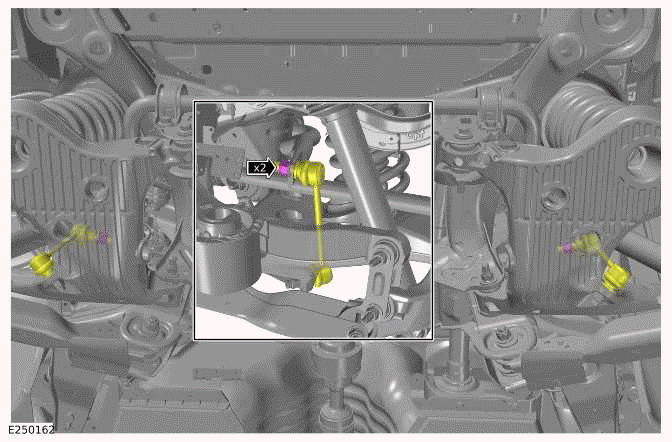

- Remove the 2 nuts.
- Release the 2 rear stabilizer bar links on both sides.
6.
.png)

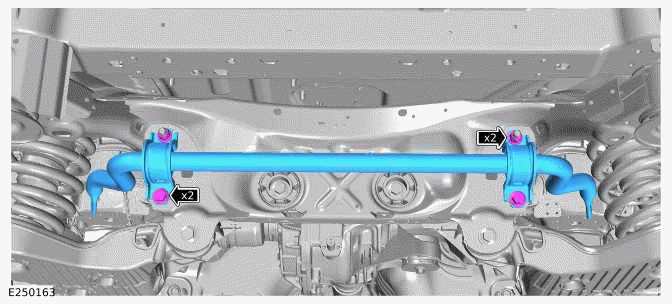

- Remove the 2 nuts.
- Remove the 2 bolts.
- Remove the stabilizer bar assembly.
INSTALLATION
1.
- Install the stabilizer bar assembly.
- Install and tighten the 2 nuts.
Torque: 110Nm
- Install and tighten the 2 bolts.
Torque: 110Nm
2.
CAUTION: Use a wrench on the hexagon provided to prevent the ball joint rotating.
- Connect the 2 rear stabilizer bar links to the stabilizer bar.
- Install and tighten the 2 nuts.
Renew Part: Stabilizer bar link nuts Quantity: 2.
Torque: 185Nm
3.
- Install the heatshield.
- Install and tighten the 2 bolts.
Torque: 9Nm
4.
- Secure the exhaust system at the 3 mounting rubbers.
- Remove the transmission jack.
5.
- Install the rear wheels and tires.
