Land Rover Defender: Fuel Flap Assembly
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- Protect the surrounding paintwork and body.
1. Fuel system health and safety precautions.
2. Raise and support the vehicle on a suitable 2-post lift.
3. Remove the rear right wheel arch liner.
4.
.png)

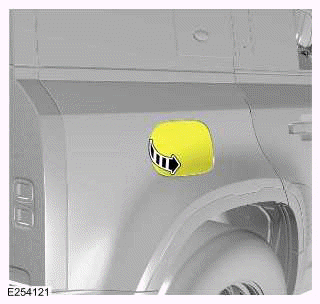

Open the fuel flap.
5.
.png)

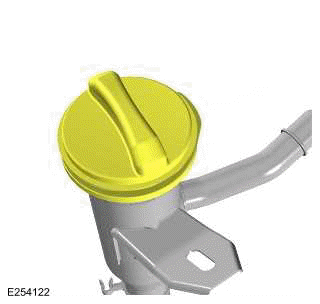

Release the fuel filler cap.
6.
NOTE:
If equipped.
.png)

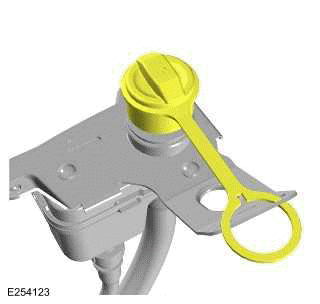

Release the Diesel Exhaust Fluid (DEF) fuel filler cap.
7.
.png)

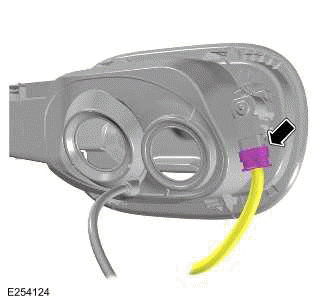

Disconnect the electrical connector.
8.
.png)

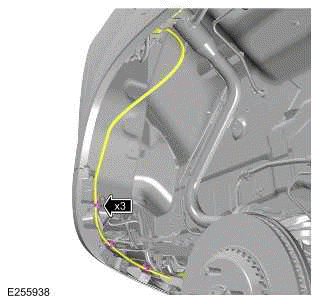

Release the breather hose from the 3 clips.
9.
CAUTION:
Make sure that the fuel flap is open.
.png)

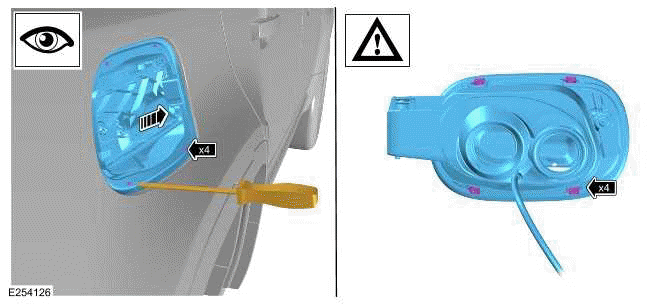

- Release the 4 clips.
- Remove the fuel flap assembly.
10.
NOTE:
Do not disassemble further if the component is removed for access only.
.png)

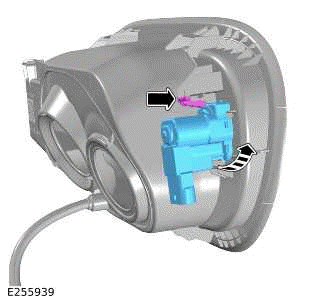

- Release the clip.
- Remove the latch.
INSTALLATION
1.
CAUTION:
Make sure that all the clips are correctly installed.
Install the latch to the fuel flap assembly.
2.
CAUTION:
Make sure that all the clips are correctly installed.
- Connect the electrical connector to the fuel flap assembly.
- Install the fuel flap assembly.
3. Secure the breather hose to the 3 clips.
4.
NOTE:
If equipped.
Install the DEF fuel filler cap.
5. Install the fuel filler cap.
6. Install the rear right wheel arch liner.
