Land Rover Defender: Tie-Rod

REMOVAL AND INSTALLATION

REMOVAL

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.

NOTE:

1. Raise and support the vehicle on a suitable 2-post lift.

2. Remove the rear wheel and tire assembly.

3.

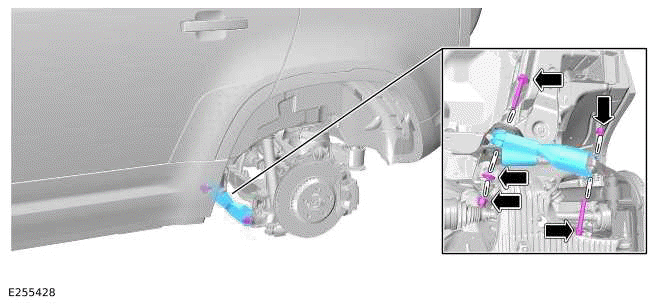

Tie-Rod

INSTALLATION

1.

Torque

  • Stage1: 40Nm
  • Stage2: 90º

Torque

  • Stage1: 70Nm
  • Stage2: 240º

2. Install the rear wheel and tire assembly.

3. Use the Jaguar Land Rover (JLR) approved wheel alignment equipment, to check and adjust the 4 wheel alignment.
