Land Rover Defender: Rear Door Bass Speaker - 110

Land Rover Defender 2020-2026 Service Manual / Electrical / Information and Entertainment System / Rear Door Bass Speaker - 110

REMOVAL AND INSTALLATION

REMOVAL

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for the left side components, right side components are similar.

1. Remove the rear door trim panel.

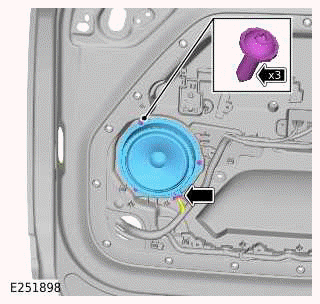

Rear Door Bass Speaker - 110

Disconnect the electrical connector.
Remove the 3 bolts.
Remove the rear door bass speaker.

INSTALLATION

Install the rear door bass speaker.
Install and tighten the 3 bolts.

Torque: 1.7Nm
Connect the electrical connector to the rear door bass speaker.

2. Install the rear door trim panel.
