Land Rover Defender: Rear Door Tweeter Speaker - 110

Land Rover Defender 2020-2026 Service Manual / Electrical / Information and Entertainment System / Rear Door Tweeter Speaker - 110

REMOVAL AND INSTALLATION

REMOVAL

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for the left side components, right side components are similar.

1. Remove the rear door trim panel.

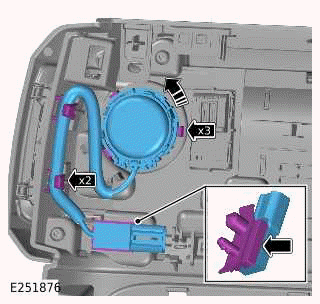

Rear Door Tweeter Speaker - 110

Release the 3 wiring harness clips.
Release the rear door tweeter speaker from the 3 clips.
Remove the rear door tweeter speaker.

INSTALLATION

Install the rear door tweeter speaker.
Install the wiring harness into the 3 clips.

2. Install the rear door trim panel.
