Land Rover Defender: Rear Bass Speaker - 90
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains illustrations for the left side components,
right side components are similar.
1. Remove the rear quarter trim panel.
2.
.png)

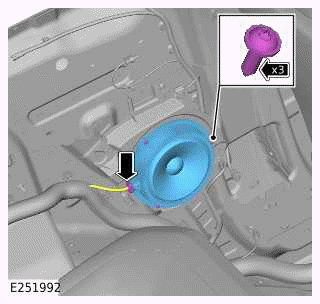

- Disconnect the electrical connector.
- Remove the 3 bolts.
- Remove the rear bass speaker.
INSTALLATION
1.
- Install the rear bass speaker.
- Install and tighten the 3 bolts.
Torque: 1.7Nm
- Connect the electrical connector to the rear bass speaker.
2. Install the rear door trim panel.
