Land Rover Defender: Front Fender Trim Panel
Land Rover Defender 2020-2025 Service Manual / Body and Paint / Exterior Trim and Ornamentation / Front Fender Trim Panel
REMOVAL AND INSTALLATION
REMOVAL
CAUTION: Make sure to protect the paintwork.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1.
.png)

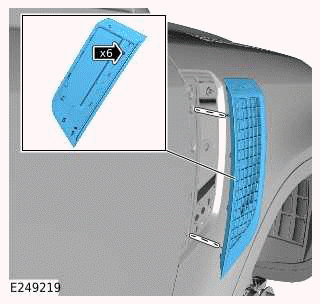

- Release the 6 clips.
- Remove the front fender trim panel.
INSTALLATION
1.
CAUTION: Take extra care not to damage the component.
.png)

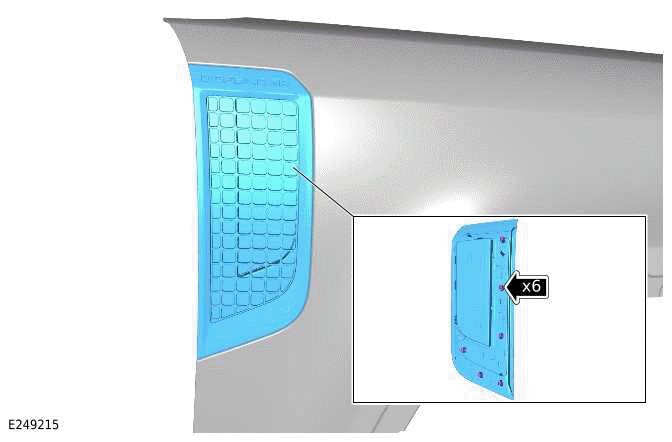

- Install the front fender trim panel.
- Make sure that all the clips are correctly installed.
