Land Rover Defender: Rear Armature

REMOVAL AND INSTALLATION

PART(S)

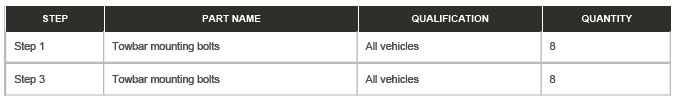

Rear Armature

REMOVAL

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

The following step(s) applies to: All vehicles

1. Raise and support the vehicle on a suitable 2 post lift.

2. Disconnect the startup battery ground cable.

3. Remove the rear bumper.

4. Remove the rear exhaust silencer.

The following step(s) applies to: Vehicles with 2.0L engine

5.

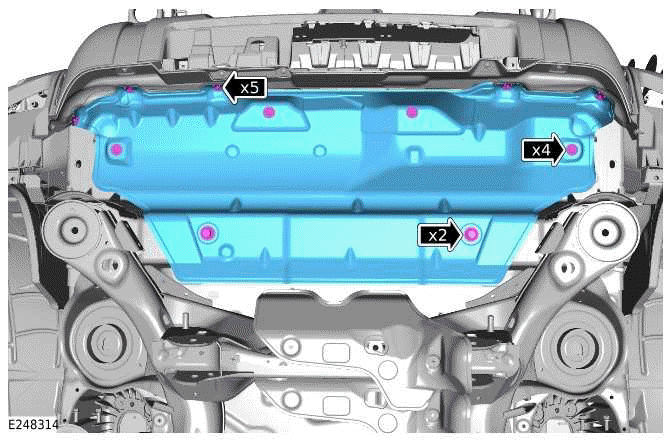

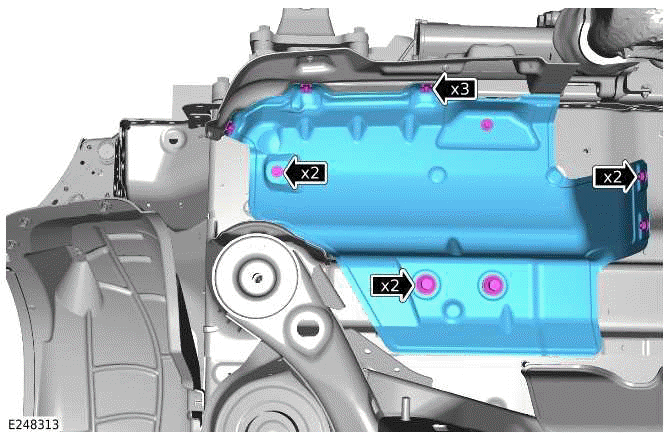

Rear Armature

The following step(s) applies to: Vehicles with 3.0L petrol engine

6.

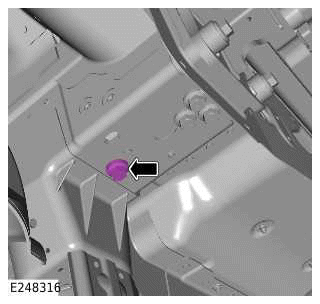

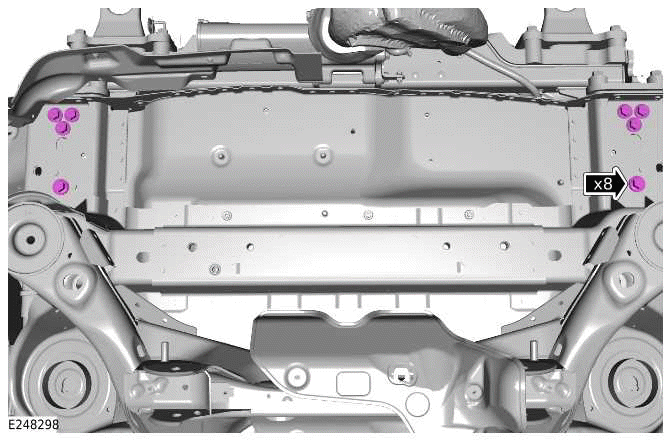

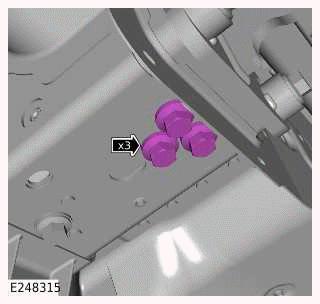

Rear Armature

The following step(s) applies to: All vehicles

7.

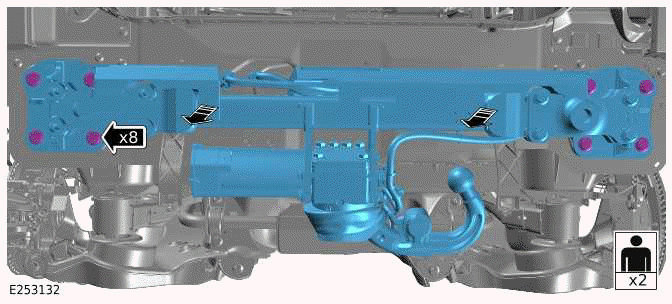

Rear Armature

Remove and discard the 8 bolts.

8.

Rear Armature

Disconnect the 3 electrical connectors.

9.

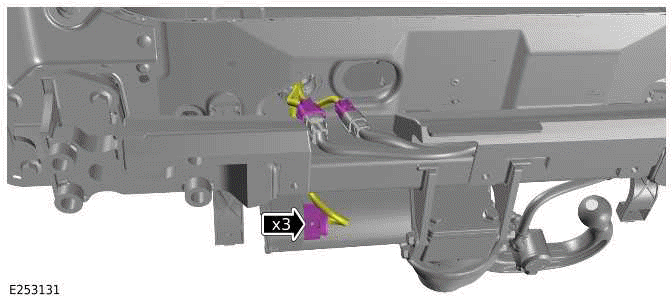

Rear Armature

INSTALLATION

The following step(s) applies to: All vehicles

1.

2. Connect the 3 electrical connectors to the tow bar.

3.

Rear Armature

4.

NOTE: Repeat this step for the other side.

Rear Armature

5.

NOTE: Repeat this step for the other side.

Rear Armature

The following step(s) applies to: Vehicles with 3.0L petrol engine

6.

The following step(s) applies to: Vehicles with 2.0L engine

7.

The following step(s) applies to: All vehicles

8. Install the rear silencer.

9. Install the rear bumper.

10. Connect the startup battery ground cable.
