Land Rover Defender: Front Bumper Lower Cover
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- Make sure that the clips are installed in the correct location.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2.
.png)

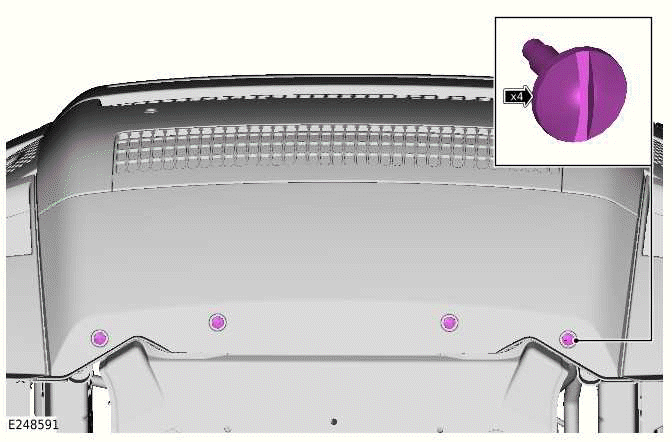

Remove the 4 screws.
3.
.png)

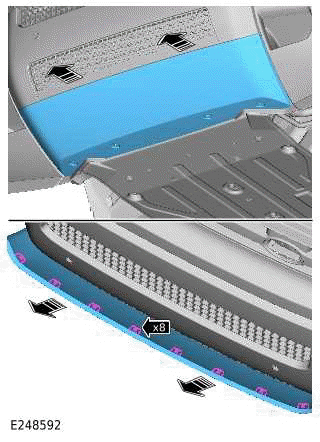

- Release the 8 clips.
- Remove the front bumper lower cover.
INSTALLATION
1.
NOTE: Make sure that the clips are installed in the correct location.
- Install the front bumper lower cover.
- Install the 8 clips.
2.
- Install and tighten 4 screws.
Torque: 5Nm
