Land Rover Defender: Oil Cooler - Ingenium I4 2.0l Petrol
REMOVAL AND INSTALLATION
PART(S)
REMOVAL
WARNINGS:
- Be prepared to collect escaping oil.
- Be prepared to collect escaping coolant.
CAUTION:
Before disconnecting any components, make sure the area is clean and free from
foreign material. When
disconnected all openings must be sealed.
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Disconnect the startup battery ground cable.
3. Drain the cooling system.
4. Remove the turbocharger.
5.

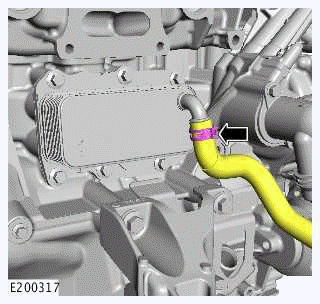

- Release the coolant hose clamp.
- Release the coolant hose.
6.

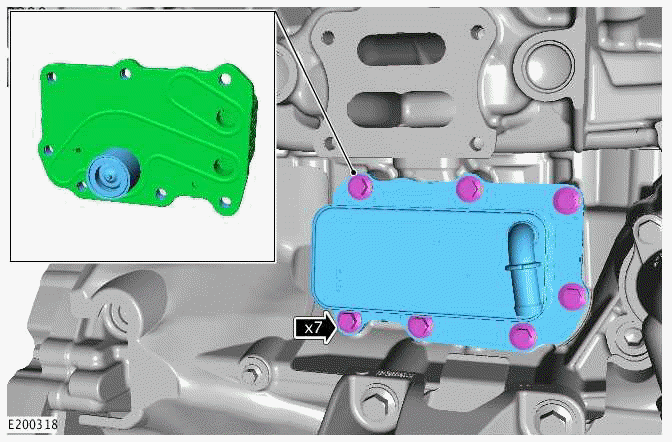

- Remove the 7 bolts.
- Remove the oil cooler.
- Remove and discard the gasket.
INSTALLATION

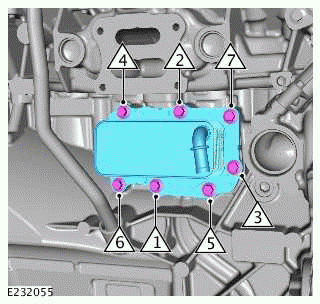

1.
2.
- Install the coolant hose.
- Install the coolant hose clamp.
3. Install the turbocharger.
4. Vacuum fill the cooling system.
5. Connect the startup battery ground cable.
