Land Rover Defender: Left Loadspace Trim Panel - 110, Vehicles With: 5 Seats
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1.

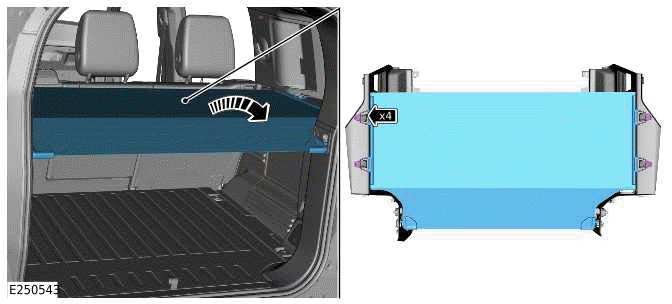

.png)
Remove the loadspace cover.
2.

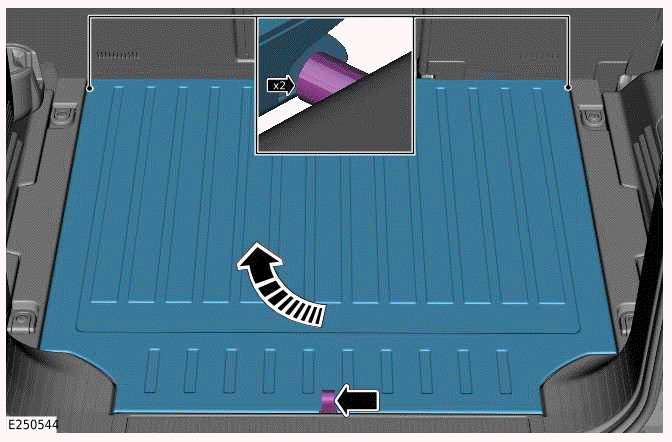

.png)
Remove the loadspace floor trim.
3.

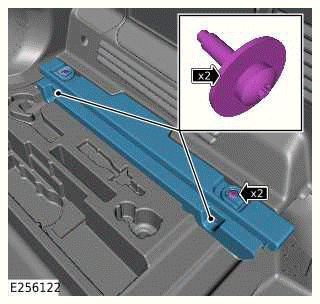

.png)
- Remove the 2 bolts.
- Remove the 2 lower clips.
- Remove the loadspace lower side trim.
4.

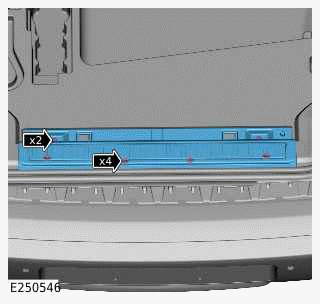

.png)
- Remove the 2 bolts.
- Release the 4 clips.
- Remove the loadspace treadplate.
5.

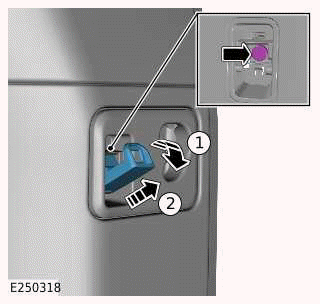

.png)
- Remove the coat hanger in the sequence shown.
- Remove the bolt.
6. Remove the C-pillar upper trim panel.
7.
NOTE:
Note the orientation of the component prior to removal.

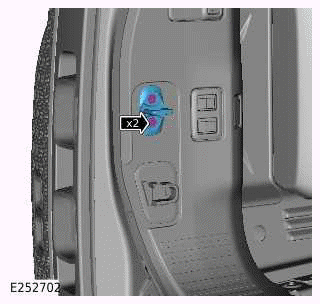

.png)
- Remove the 2 bolts.
- Remove the tailgate striker.
8.

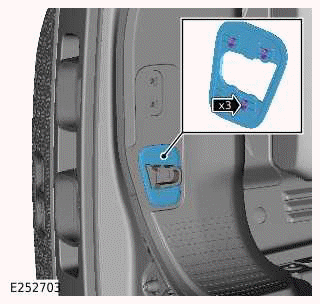

.png)
- Release the 3 clips.
- Remove the tailgate latch guide trim.
9.
NOTE:
Note the orientation of the component prior to removal.

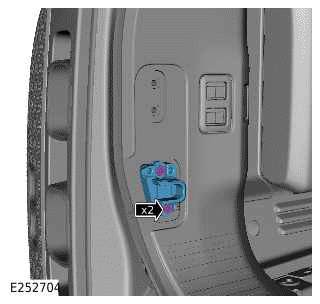

.png)
- Remove the 2 bolts.
- Remove the tailgate latch guide.
10.

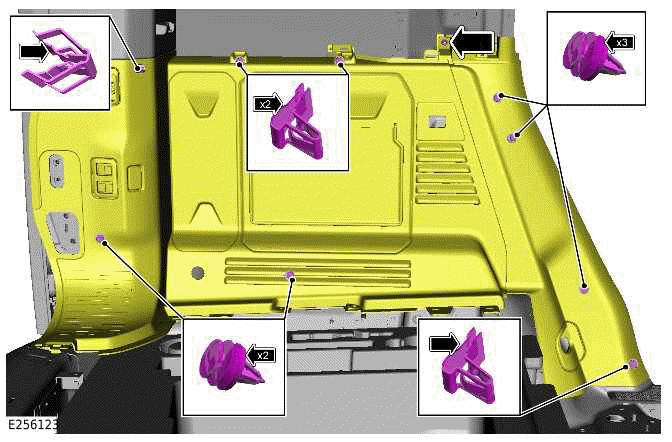

.png)
- Remove the nut.
- Release the 9 clips.
- Release the loadspace side trim panel.
11.

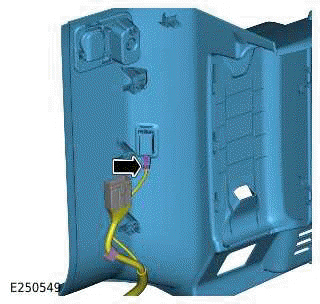

.png)
- Disconnect the loadspace electrical connector.
- Remove the loadspace side trim panel.
INSTALLATION
1.
NOTE:
Make sure that the trim is correctly installed to the clips.
- Connect the loadspace lamp electrical connector.
- Install the loadspace side trim panel.
- Install the 9 clips.
- Install and tighten the nut.
Torque: 4.1Nm
2.
- Install the tailgate latch guide.
- Install and tighten the 2 bolts.
Torque: 24Nm
- Install the tailgate latch guide trim.
3.
- Install the tailgate striker.
- Install and tighten the 2 bolts.
Torque: 24Nm
4. Inspect the tailgate alignment and adjust if required.
5. Install the C-pillar upper trim panel.
6.
- Install and tighten the coat hanger bolt.
Torque: 4.1Nm
- Install the coat hanger.
7.
- Install the loadspace treadplate.
- Install the 4 clips.
- Install and tighten the 2 bolts.
Torque: 4.1Nm
8.

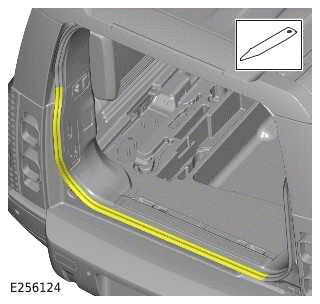

.png)
Reposition the tailgate aperture seal into the correct location.
9.
- Install the loadspace lower side trim.
- Install and tighten the 2 bolts.
Torque: 24Nm
- Install the 2 lower clips.
10. Install the loadspace floor trim.
11. Install the loadspace cover.
