Land Rover Defender: Right Loadspace Trim Panel - [+] 7 Seat Configuration, 110
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1.
![Right Loadspace Trim Panel - [+] 7 Seat Configuration, 110](images/books/293/index 210(6).png)

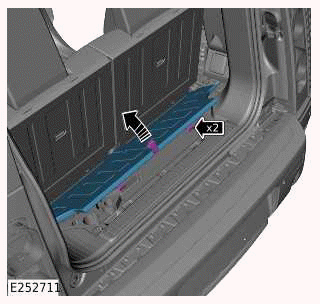

Remove the loadspace floor trim.
2.
![Right Loadspace Trim Panel - [+] 7 Seat Configuration, 110](images/books/293/index 211(6).png)

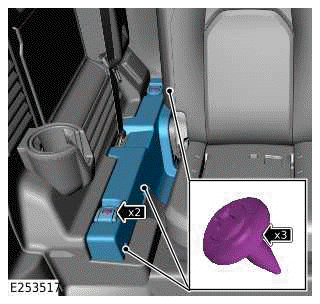

- Remove the 2 bolts.
- Release the 3 clips.
- Remove the loadspace lower side trim.
3.
![Right Loadspace Trim Panel - [+] 7 Seat Configuration, 110](images/books/293/index 212(6).png)
- Remove the 2 bolts.
- Release the 4 clips.

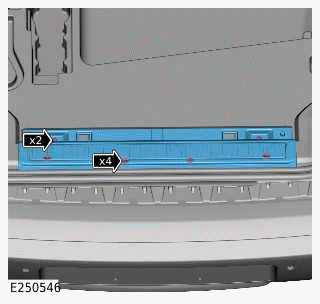

- Remove the loadspace treadplate.
4.
![Right Loadspace Trim Panel - [+] 7 Seat Configuration, 110](images/books/293/index 213(6).png)

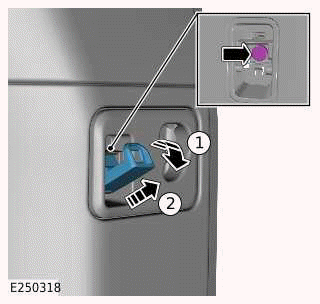

- Remove the coat hanger in the sequence shown.
- Remove the bolt.
5.
![Right Loadspace Trim Panel - [+] 7 Seat Configuration, 110](images/books/293/index 214(6).png)
- Release the 2 clips.

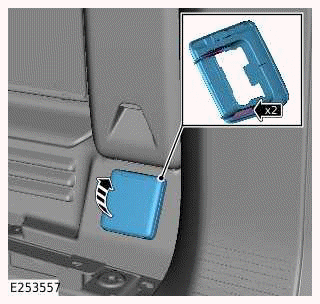

- Remove the domestic voltage socket trim panel.
6. Remove the C-pillar upper trim panel.
7.
![Right Loadspace Trim Panel - [+] 7 Seat Configuration, 110](images/books/293/index 215(6).png)
- Release the 6 clips.

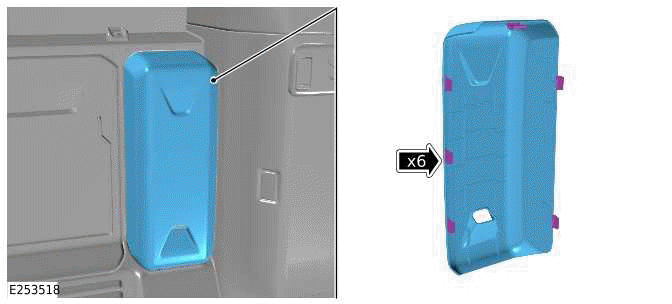

- Remove the Rear Junction Box (RJB) access cover.
8.
![Right Loadspace Trim Panel - [+] 7 Seat Configuration, 110](images/books/293/index 216(6).png)
- Remove the nut.
- Release the 12 clips.

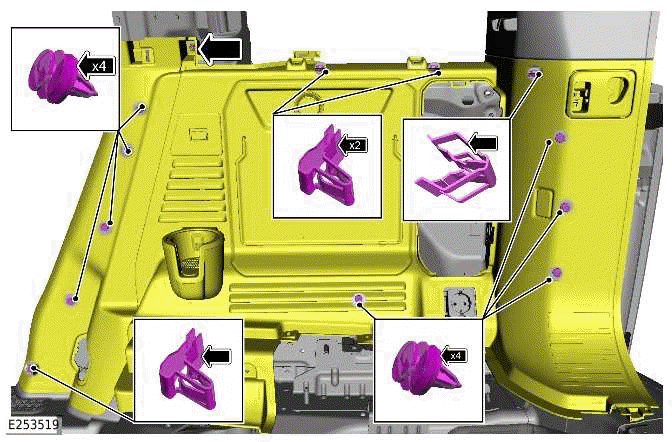

- Release the loadspace side trim panel.
9.
![Right Loadspace Trim Panel - [+] 7 Seat Configuration, 110](images/books/293/index 217(6).png)

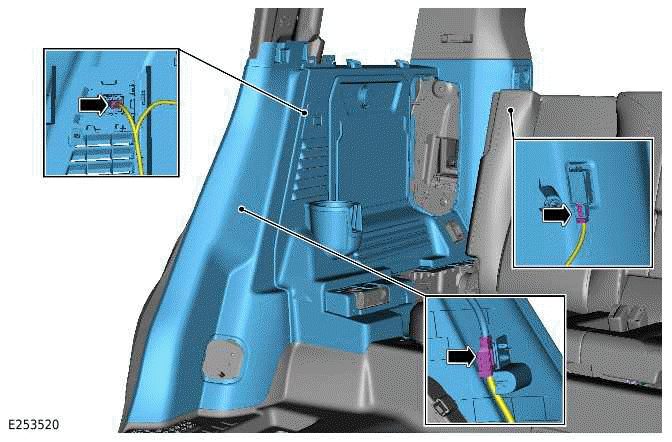

- Disconnect the 3 electrical connectors.
- Remove the loadspace side trim panel.
INSTALLATION
1.
NOTE:
Make sure that the trim is correctly installed to the clips.
- Connect the 3 electrical connectors to the loadspace trim panel.
- Install the loadspace side trim panel.
- Install the 12 clips.
- Install and tighten the nut.
Torque: 4.1Nm
2.
- Install the Rear Junction Box (RJB) access cover.
- Install the 6 clips.
3. Install the C-pillar upper trim panel.
4.
- Install the domestic voltage socket trim panel.
- Install the 2 clips.
5.
- Install and tighten the coat hanger bolt.
Torque: 4.1Nm
- Install the coat hanger.
6.
- Install the loadspace treadplate.
- Install the 4 clips.
- Install and tighten the 2 bolts.
Torque: 4.1Nm
7.
![Right Loadspace Trim Panel - [+] 7 Seat Configuration, 110](images/books/293/index 218(6).png)

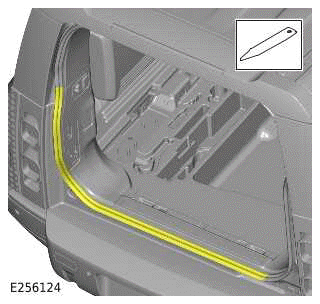

Reposition the tailgate aperture seal into the correct location.
8.
- Install the loadspace lower side trim.
- Install the 3 lower clips.
- Install and tighten the 2 bolts.
Torque: 24Nm
9. Install the loadspace floor trim.
