REMOVAL AND INSTALLATION

SPECIAL TOOL(S)

Drive Plate - Ingenium I4 2.0l Petrol

JLR-303-1630

Locking Tool, Crankshaft Pulley

PART(S)

Drive Plate - Ingenium I4 2.0l Petrol

REMOVAL

NOTES:

1. Raise and support the vehicle on a suitable 2 post lift.

2. Disconnect the startup battery ground cable.

3. Remove the charge air cooler.

4. Remove the transmission.

5.

Drive Plate - Ingenium I4 2.0l Petrol

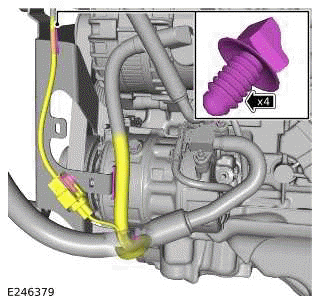

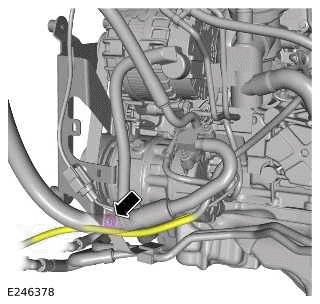

Release the wiring harness clip.

6.

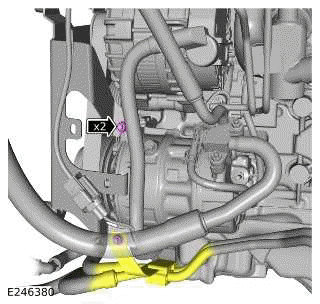

Drive Plate - Ingenium I4 2.0l Petrol

7.

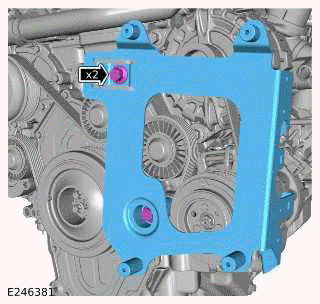

Drive Plate - Ingenium I4 2.0l Petrol

8.

Drive Plate - Ingenium I4 2.0l Petrol

9.

CAUTIONS:

Drive Plate - Ingenium I4 2.0l Petrol

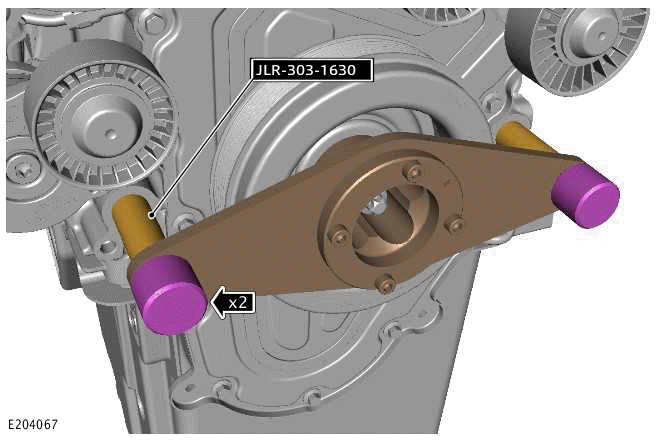

Install the special tool.

Special Tool(s): JLR-303-1630

10.

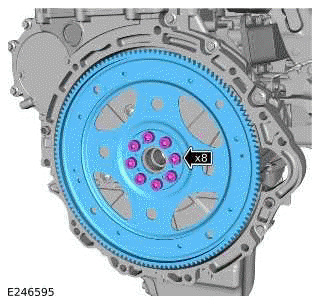

Drive Plate - Ingenium I4 2.0l Petrol

11.

Drive Plate - Ingenium I4 2.0l Petrol

INSTALLATION

1.

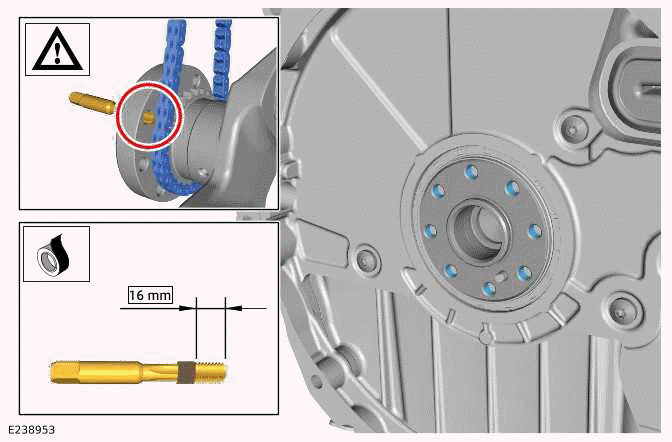

CAUTION: Do not insert the bottoming tap more than the depth of the threaded holes (16mm). Apply tape to the bottoming tap 16mm from the end as a visual guide.

Drive Plate - Ingenium I4 2.0l Petrol

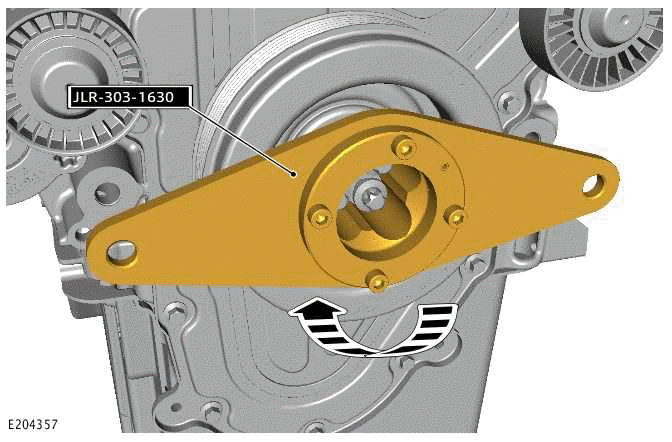

Use a suitable bottoming tap to clean the threads.

2.

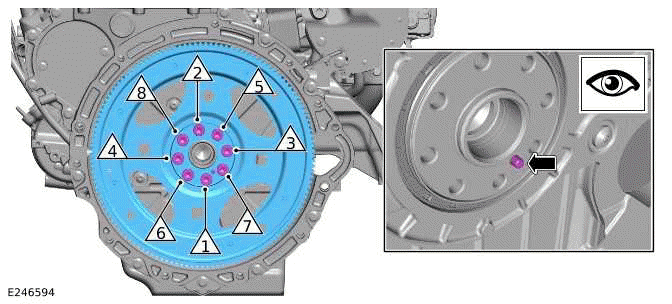

Drive Plate - Ingenium I4 2.0l Petrol

3. Remove the special tool.

4.

5.

6.

7. Install the transmission.

8. Install the charge air cooler.

9. Connect the startup battery ground cable.
