COMPONENT LOCATION

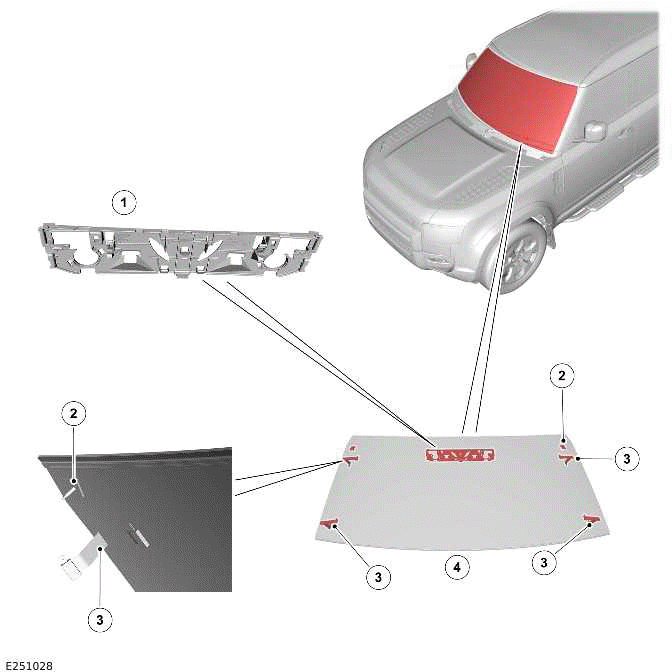

COMPONENT LOCATION - 1 OF 6 - WINDSHIELD
NOTES:
- Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- The windshield is serviceable as whole assembly only.
.png)
- Bracket - Image Processing Module (IPMA)
- Locator pin (quantity 2)
- Windshield heater element connector (if equipped) (quantity 4)
- Windshield

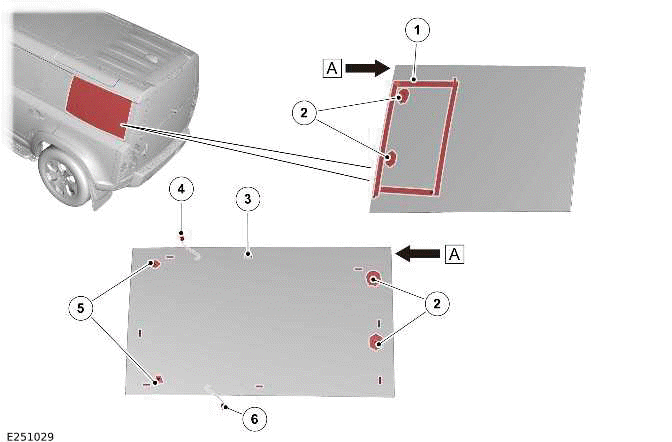

COMPONENT LOCATION - 2 OF 6 - REAR LEFT QUARTER WINDOW
NOTES:
- Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- The rear left quarter window is serviceable as whole assembly only.
.png)
- Front
- Double-side tape (if equipped)
- Locator pin (quantity 2)
- Spacer (quantity 8)
- Antenna fly-lead - Amplitude Modulation/Frequency Modulation (AM/FM)
- Locator pin (quantity 2)
- Antenna fly-lead - Digital radio (if equipped)

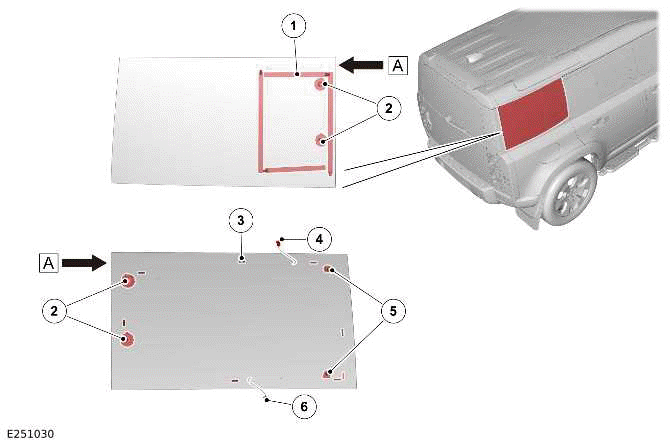

COMPONENT LOCATION - 3 OF 6 - REAR RIGHT QUARTER WINDOW
NOTES:
- Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- The rear right quarter window is serviceable as whole assembly only.
.png)
- Front
- Double-side tape (if equipped)
- Locator pin (quantity 2)
- Spacer (quantity 8)
- Antenna fly-lead - FM/digital radio (if equipped) or FM
- Locator pin (quantity 2)
- Antenna fly-lead - Telestart (if equipped)

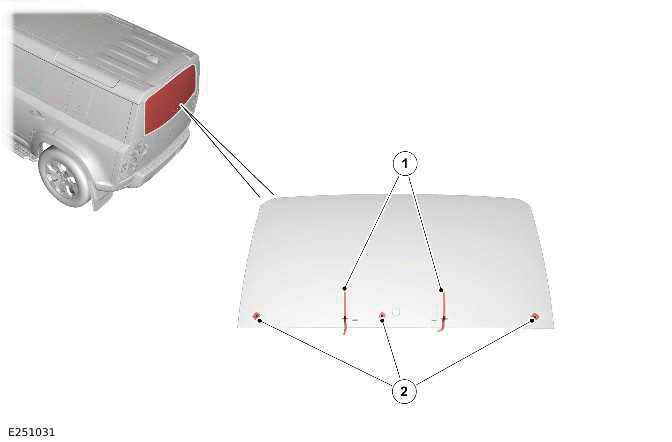

COMPONENT LOCATION - 4 OF 6 - REAR WINDOW
NOTES:
- Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- The rear window is serviceable as whole assembly only.
.png)
- Rear window heater element connector (quantity 2)
- Locator pin (quantity 3)

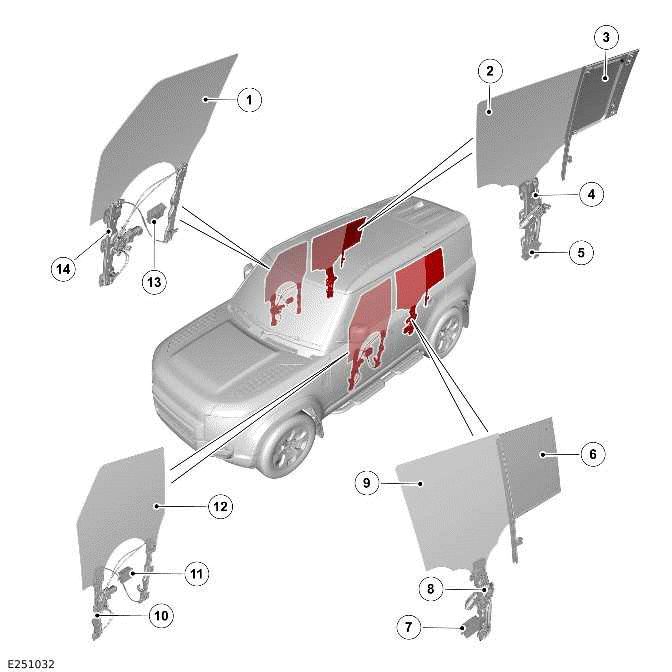

COMPONENT LOCATION - 5 OF 6 - DOOR WINDOW REGULATORS
NOTES:
- Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- RHD is shown, LHD is similar.
.png)
- Front right door window
- Rear right door window - Vehicle with 5 doors only
- Quarter glass - Rear right door - Vehicle with 5 doors only
- Rear right door window regulator - Vehicle with 5 doors only
- Driver Rear Door Module (DRDM) - Vehicle with 5 doors only
- Quarter glass - Rear left door - Vehicle with 5 doors only
- Passenger Rear Door Module (PRDM) - Vehicle with 5 doors only
- Rear left door window regulator - Vehicle with 5 doors only
- Rear left door window - Vehicle with 5 doors only
- Front left door window regulator
- Passenger Door Control Module (PDM)
- Front left door window
- Driver Door Control Module (DDM)
- Front right door window regulator

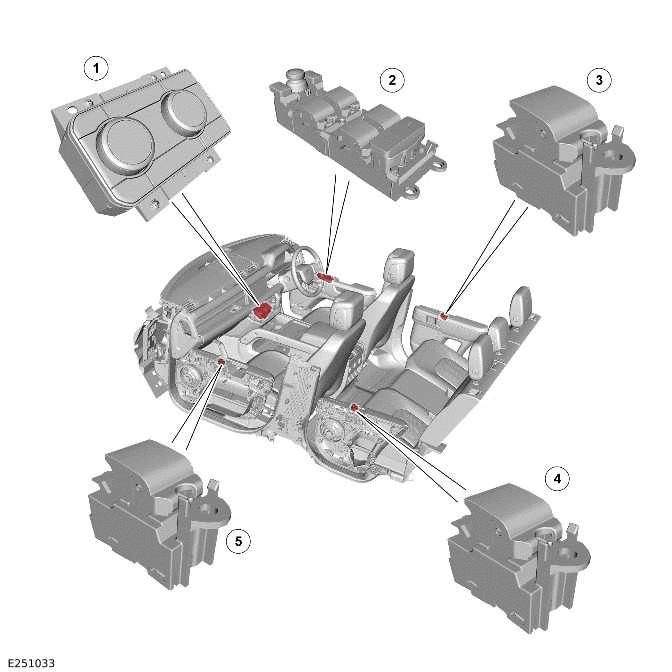

COMPONENT LOCATION - 6 OF 6 - DOOR WINDOW SWITCHES
NOTES:
- Vehicle with 5 doors is shown, vehicle with 3 doors is similar.
- RHD is shown, LHD is similar.
.png)
- Integrated Control Panel (FCIM)
- Driver door switchpack
- Rear right door switchpack - Vehicle with 5 doors only
- Rear left door switchpack - Vehicle with 5 doors only
- Passenger door switchpack
READ NEXT:
DOOR WINDOWS
Operation of the window lift system is controlled by the Body Control Module
(BCM)/ Gateway Control Module (GWM)
in conjunction with the:
DDM
PDM
PRDM - Vehicle with 5 doors only
DR
DRIVER DOOR SWITCHPACK
NOTE:
RHD is shown, LHD is similar.
The driver door switchpack is powered by the DDM. When the switches in the
driver door switchpack are used, the
switchpack translates the s
The door window operates with the ignition in either Power Mode 4 (accessory)
or Power Mode 6 (ignition ON). The
door window operates after the ignition is switched OFF, for 5 minutes or until
a doo
