Land Rover Defender: In-Vehicle Temperature Sensor
Land Rover Defender 2020-2026 Service Manual / Electrical / Climate Control System / Climate Control / In-Vehicle Temperature Sensor
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.

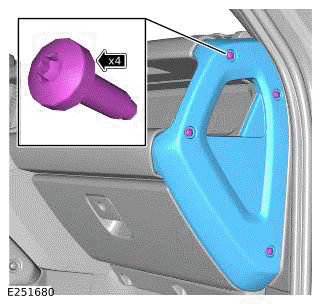

1.
.png)
- Remove the 4 bolts.
- Remove the instrument panel passenger side trim.

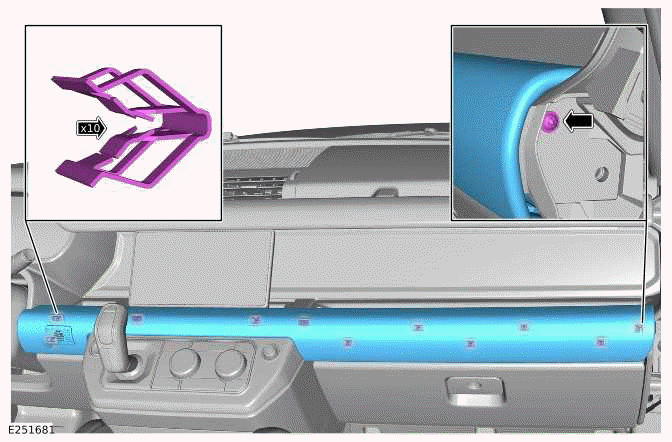

2.
CAUTION: Take extra care not to damage the component.
.png)
- Remove the bolt.
- Remove the instrument panel lower surround trim at the 10 clips.

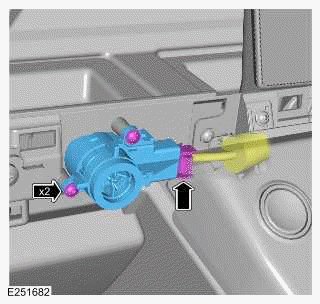

3.
.png)
- Disconnect the electrical connector from the in-vehicle temperature sensor.
- Remove the 2 screws.
- Remove the in-vehicle temperature sensor.
INSTALLATION
1.
- Install the in-vehicle temperature sensor.
- Install and tighten the 2 screws.
Torque: 1Nm
- Connect the electrical connector to the in-vehicle temperature sensor.
2.
- Install the instrument panel lower surround trim to the 10 clips.
- Install and tighten the bolt.
Torque: 1.7Nm
3.
- Install the instrument panel passenger side trim.
- Install and tighten the 4 bolts.
Torque: 2.5Nm
