Land Rover Defender: Second Row Seat Backrest Blower
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Seating / Second Row Seat Backrest Blower
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations for right side components, left side components are similar.
1. Disconnect the startup battery ground cable.
2. Remove the second row seat backrest cover.
3.
.png)

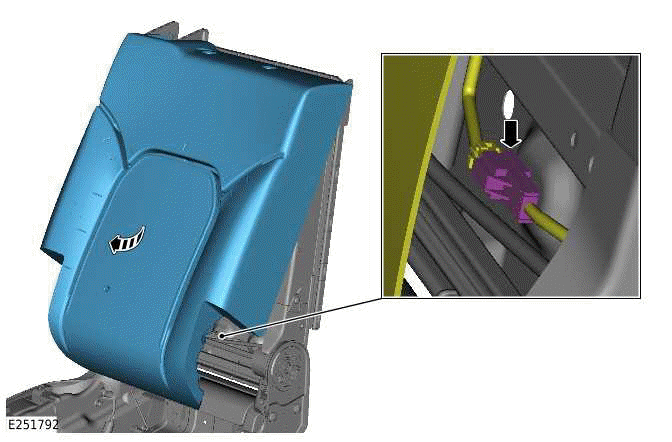

- Disconnect the electrical connector.
- Remove the second row seat backrest.
4.
.png)

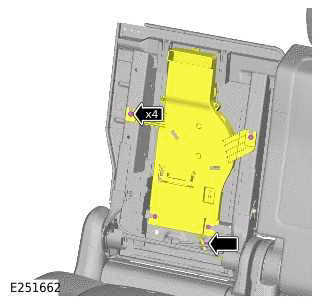

- Remove the 4 bolts.
- Release the clip.
- Release the second row seat backrest blower.
5.
.png)

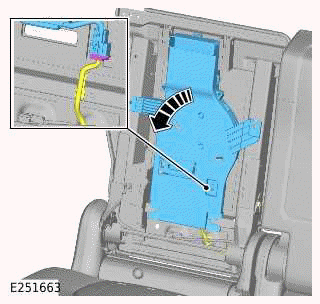

- Disconnect the electrical connector.
- Remove the second row seat backrest blower.
INSTALLATION
1.
- Install the second row seat backrest blower.
- Connect the electrical connector.
2.
- Install and tighten the 4 bolts.
Torque: 10Nm
- Install the clip.
3.
- Connect the electrical connector.
- Install the second row seat backrest.
4. Install the second row seat backrest cover.
5. Connect the startup battery ground cable.
