Land Rover Defender: Pollution Sensor
Land Rover Defender 2020-2026 Service Manual / Electrical / Climate Control System / Climate Control / Pollution Sensor
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2. Remove the instrument panel upper section.
3.
.png)

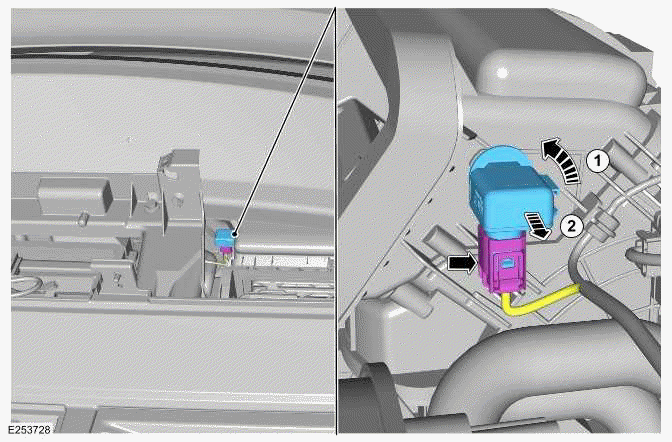

- Disconnect the electrical connector from the pollution sensor.
- Remove the pollution sensor as illustrated.
INSTALLATION
1.
- Install the pollution sensor.
- Connect the electrical connector to the pollution sensor.
2. Install the instrument panel upper section.
3. Connect the startup battery ground cable.
