Land Rover Defender: Recirculation Motor
Land Rover Defender 2020-2026 Service Manual / Electrical / Climate Control System / Climate Control / Recirculation Motor
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left hand drive vehicles, right hand drive vehicles are similar.
1. Disconnect the startup battery ground cable.
2. Remove the climate control assembly.
3.
.png)

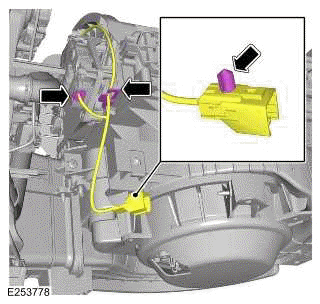

- Release the electrical connector clip from the blower housing.
- Disconnect the electrical connector from the recirculation motor.
- Release the wiring harness from the clip.
4.
.png)

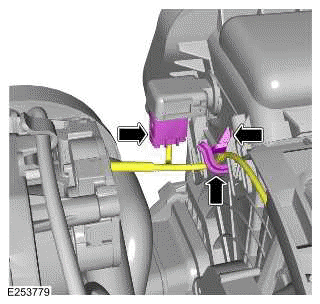

- Release the wiring harness from the clip.
- Disconnect the electrical connector from the pollution sensor.
5.
.png)

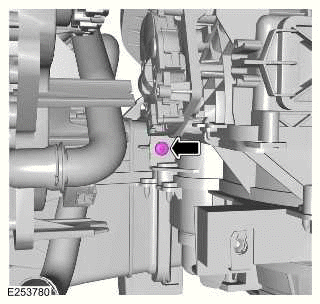

- Remove the screw.
6.
.png)

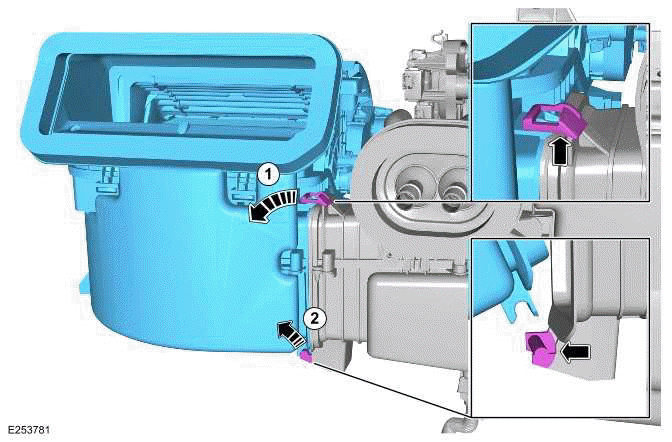

- Release the clip.
- Remove the blower housing from the climate control assembly as illustrated.
7.
.png)

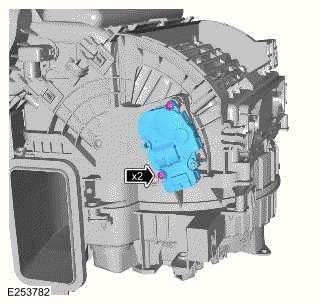

- Remove the 2 screws.
- Remove the recirculation motor.
INSTALLATION
1.
- Install the recirculation motor to the blower housing.
- Install and tighten the 2 screws.
Torque: 1.2Nm
2.
- Install the blower housing to the climate control assembly.
- Secure the clip.
- Install and tighten the screw.
Torque: 1.2Nm
3.
- Connect the electrical connector to the pollution sensor.
- Install the wiring harness to the clip.
4.
- Install the wiring harness to the clip.
- Connect the electrical connector to the recirculation motor.
- Secure the electrical connector clip to the blower housing.
5. Install the climate control assembly.
6. Connect the startup battery ground cable.
