Land Rover Defender: Image Processing Module A
Land Rover Defender 2020-2025 Service Manual / Electrical / Instrumentation and Warning Systems / Warning Devices / Image Processing Module A
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
REMOVAL
CAUTIONS:
- Use a suitable trim tool.
- Care must be taken to avoid damaging the surrounding components.
- Take extra care when removing the component, prevent damage to the mating faces.
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Make sure the ignition is OFF before carrying out this procedure.
1.
.png)

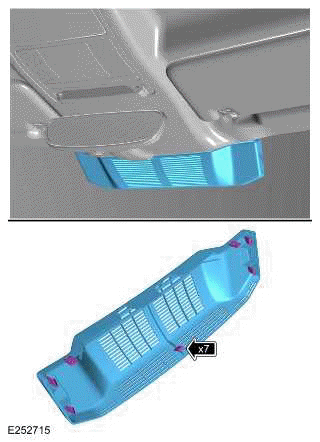

- Release the 7 clips.
- Remove the cover.
2.
.png)

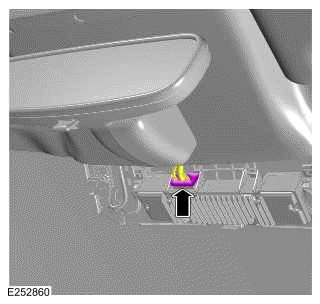

Disconnect the electrical connector from the Image Processing Module 'A' (IPMA)
3.
.png)

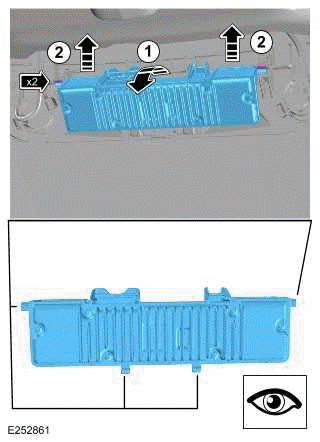

- Release the IPMA from the bracket.
- Carefully, remove the IPMA as illustrated.
INSTALLATION
1.
CAUTION: Make sure that the all the clips are correctly installed.
NOTE: Lens must be clean (no fingers print/dust/condensation/moisture ects are allowed on the lens during the installation); clean accurate the lens with lens cleaning wipes (example: uvex clear ects).
- Install the IPMA into the bracket.
- Connect the electrical connector to the IPMA.
2.
CAUTION: Make sure that all the clips are correctly installed.
Install the cover.
3. Use the Jaguar Land Rover (JLR) approved diagnostic equipment to configure the IPMA.
General Equipment: Jaguar Land Rover approved diagnostic equipment
