Land Rover Defender: Headlamp Assembly
REMOVAL AND INSTALLATION
REMOVAL
CAUTIONS:
- Protect the surrounding paintwork to avoid damage.
- Protect the surrounding trim to avoid damage.
- Before disconnecting any components, make sure the area is clean and
free from foreign material. When
disconnected all openings must be sealed.
NOTES:
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
1. Disconnect the startup battery ground cable.
2.
.png)
3.
.png)

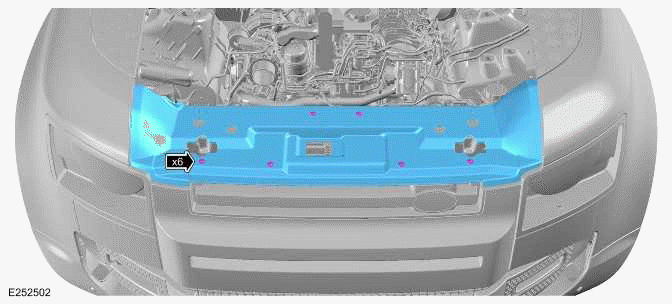

- Disconnect the electrical connector.

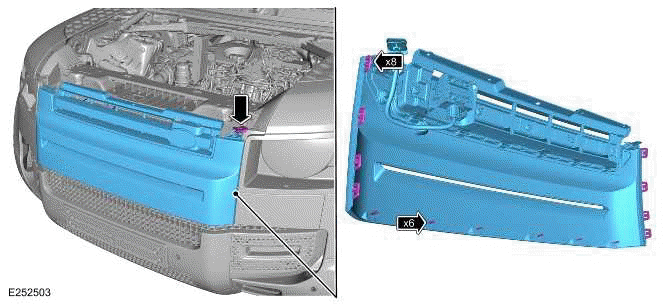

- Remove the radiator grille at 8 clips.
4.
.png)

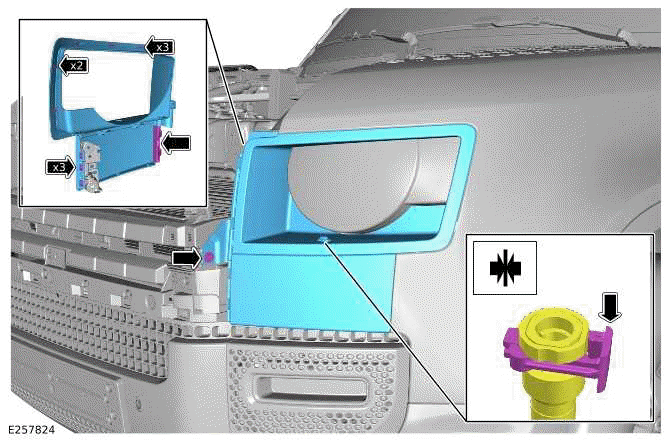

- Remove the bolt.
- Release the headlamp finisher assembly.
- Disconnect the headlamp washer jet hose.
- Remove the headlamp finisher assembly.
5.
.png)

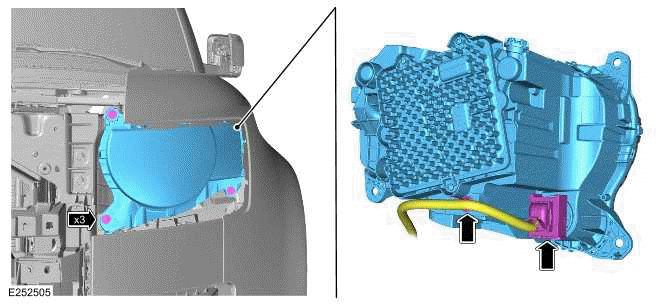

- Remove the 3 bolts.
- Release the headlamp assembly and disconnect the electrical connector.
- Remove the headlamp assembly.
INSTALLATION
1.
- Connect the electrical connector.
- Install the headlamp assembly.
- Install and tighten the 3 bolts.
Torque: 4.1Nm
2.
- Connect the headlamp washer jet hose.
- Install the headlamp finisher assembly.
- Install and tighten the bolt.
Torque: 4.1Nm
3.
- Install the radiator grille.
- Connect the electrical connector.
4.
- Install the hood latch panel finisher.
- Install the 6 clips.
5. Connect the startup battery ground cable.
6. Align the headlamps on both sides.
