Land Rover Defender: Side Repeater Lamp Assembly
Land Rover Defender 2020-2026 Service Manual / Electrical / Lighting / Exterior Lighting / Side Repeater Lamp Assembly
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Remove the door mirror cover.

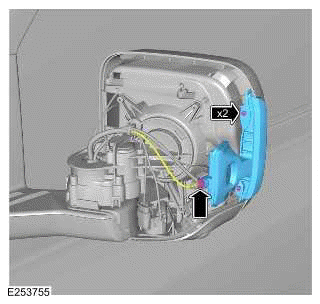

2.
.png)
- Remove the 2 screws.
- Disconnect the electrical connector.
- Remove the side repeater lamp.
INSTALLATION
1.
- Install the side repeater lamp.
- Connect the electrical connector.
- Install the 2 screws.
Torque: 1.9Nm
2. Install the door mirror cover.
