Land Rover Defender: Rear Seat Backrest
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
Removal steps in this procedure may contain installation details.
The following step(s) applies to:
All vehicles
1. Refer to: Rear Seat Backrest Cover (Seating, Removal and
Installation).

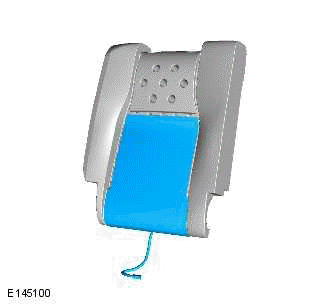

2.
.png)
The following step(s) applies to:
Vehicles with heated rear seat

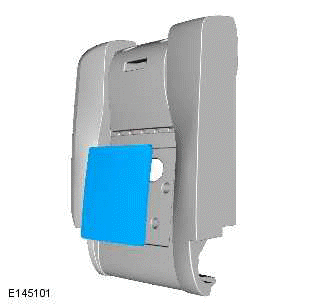

3.
CAUTION:
Care must be taken to avoid damaging the surrounding components.
.png)
INSTALLATION
1. To install, reverse the removal procedure.
