Land Rover Defender: Front Door Tweeter Speaker
Land Rover Defender 2020-2026 Service Manual / Electrical / Information and Entertainment System / Front Door Tweeter Speaker
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for the left side components, right side components are similar.
1.
.png)

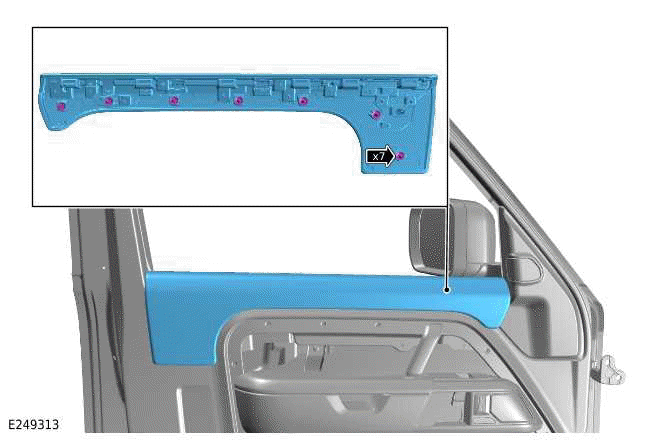

- Release the 7 clips.
- Remove the front door upper trim panel.
2.
.png)

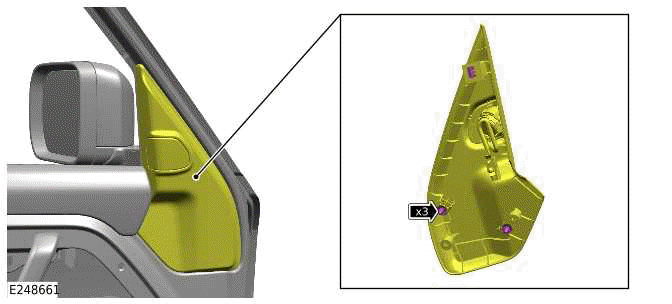

- Release the 3 clips.
- Release the door mirror trim panel.
3.
.png)

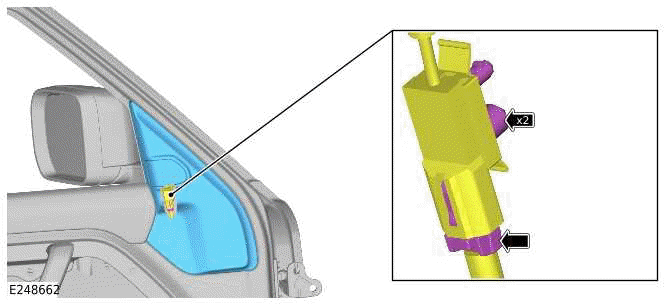

- Release the 2 clips.
- Disconnect the electrical connector.
- Remove the door mirror trim panel.
4.
.png)

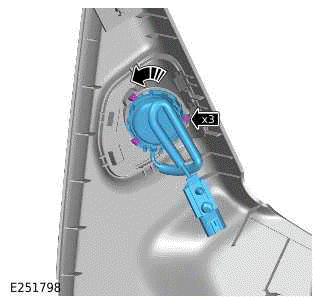

Remove the front door tweeter speaker.
INSTALLATION
1. Install the front door tweeter speaker.
2.
- Install the wiring harness into the 2 clips.
- Connect the electrical connector to the front door tweeter speaker.
3.
- Install the door mirror trim panel.
- Install the 3 door mirror trim panel clips.
4.
- Install the front door upper trim panel.
- Install the 7 front door upper trim panel clips.
