Land Rover Defender: Engine - Removal
ENGINE - INGENIUM I4 2.0L PETROL/INGENIUM I4 2.0L PETROL - PHEV
REMOVAL
SPECIAL TOOL(S)
.png)
JLR-303-1633-01
Engine Lifting Kit
.png)
JLR-303-1673

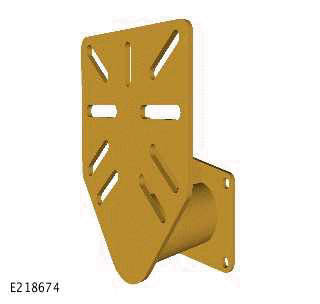

Engine stand adaptor
GENERAL EQUIPMENT
.png)
WARNING:
Be prepared to collect escaping engine coolant.
CAUTION:
- Be prepared to collect escaping fuel.
- Be prepared to collect escaping oil.
- Before disconnecting any components, make sure the area is clean and
free from foreign material. When
disconnected all openings must be sealed.
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Always follow the Petrol and Petrol-Ethanol Fuel Systems Health and Safety
Precautions, before any
repairs are done to the fuel system.
2. Raise and support the vehicle on a suitable 2 post lift.
3. Disconnect the startup battery ground cable.
4. Remove the hood.
5. Remove the transmission.
6. Remove the Air Conditioning (A/C) compressor.
7. Remove the secondary bulkhead center panel.
8.
.png)
- Disconnect the electrical connector.
- Release the wiring harness clip.
9.
.png)

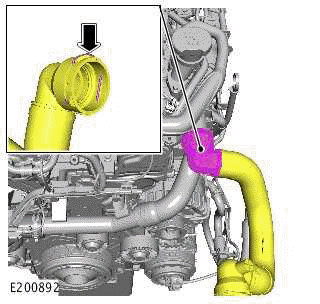

Disconnect the engine coolant hose.
10.
.png)

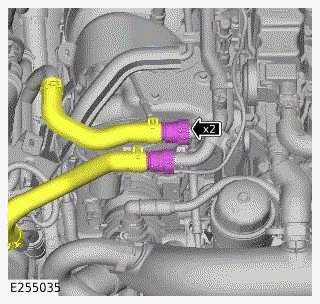

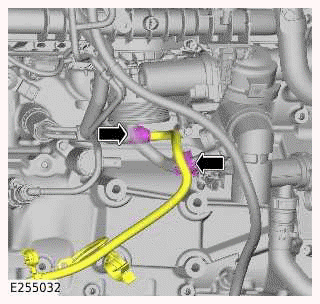

Disconnect the 2 engine coolant hoses.
11.
.png)

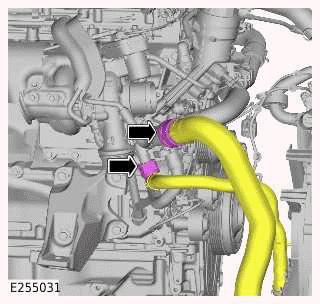

Disconnect the 2 engine coolant hoses.
12.
.png)

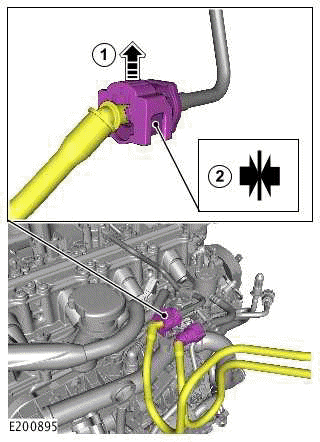

- Disconnect the Low Pressure (LP) fuel line.
- Disconnect the breather pipe.
13.
.png)

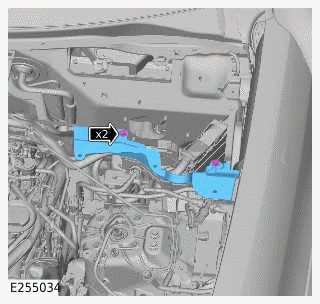

- Remove the 2 bolts.
- Remove the closing panel.
14.
.png)
- Release the bolt.

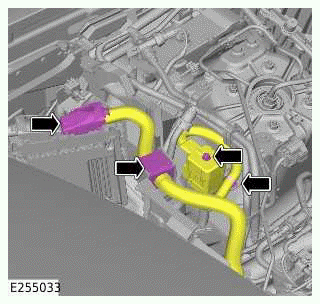

- Disconnect the 2 electrical connectors.
- Release the wiring harness clip.
- Release the wiring harness grommet.
15.
.png)
16.
.png)
Remove and discard the nut.
17.
.png)

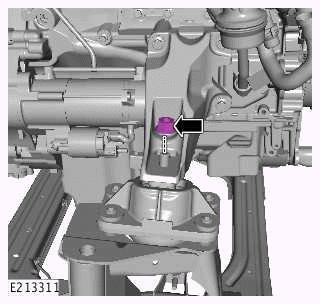

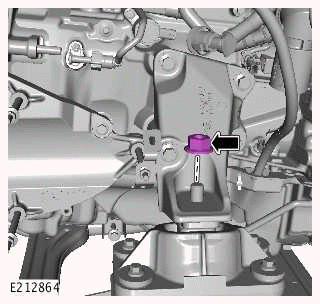

Remove and discard the nut.
18.
WARNING:
This step requires the aid of another technician.
.png)
19.
.png)

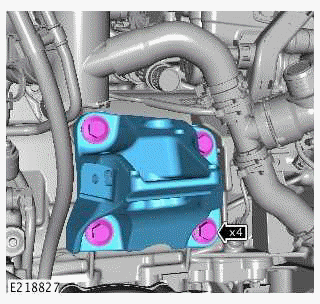

- Remove the 4 bolts.
- Remove the bracket.
20.
.png)
21.
.png)

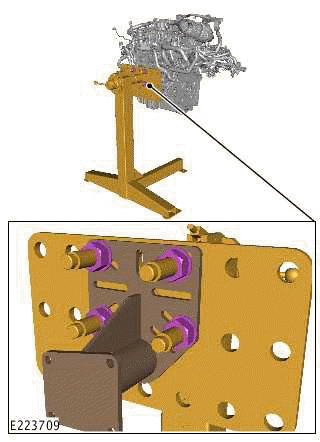

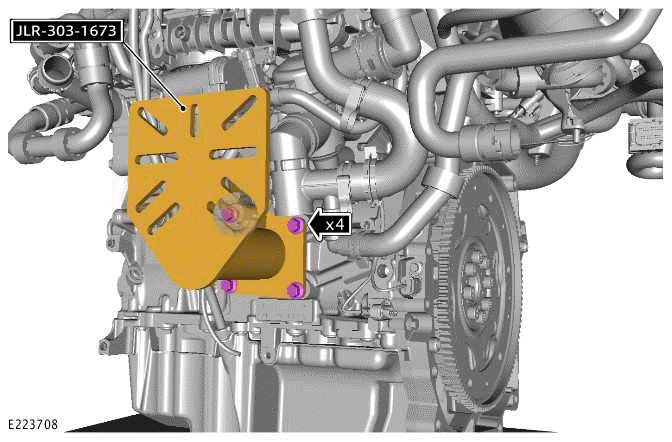

- Install the engine assembly onto a suitable engine stand.
General Equipment: Engine stand

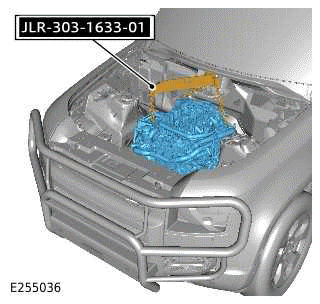

- Remove the hydraulic jib crane.
General Equipment: Hydraulic jib crane
- Remove the special tool.

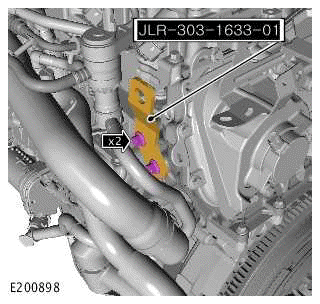

Special Tool(s): JLR-303-1633-01
