Land Rover Defender: Engine Cover - Ingenium I4 2.0l Petrol
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Interior Trim and Ornamentation / Engine Cover - Ingenium I4 2.0l Petrol
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1.

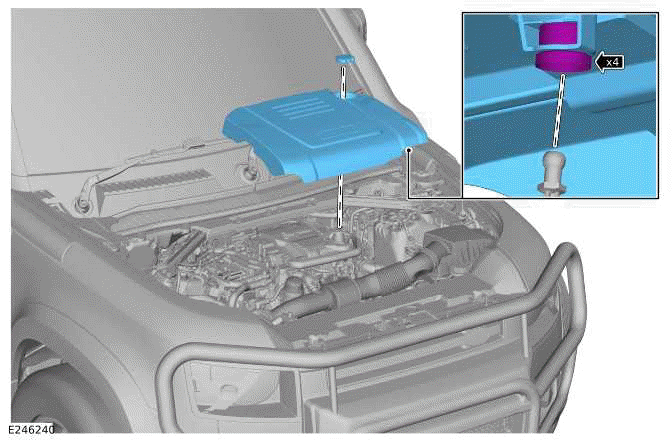

.png)
- Remove the oil filler cap.
- Release the 4 clips.
- Remove the engine cover.
INSTALLATION
1.
CAUTION: Do not use excessive force to install the component.
- Install the engine cover.
- Install the oil filler cap.
