Land Rover Defender: Front Treadplate
REMOVAL AND INSTALLATION
REMOVAL
CAUTION:
Protect the surrounding paintwork to avoid damage.
NOTE:
- This procedure contains illustrations for the left side components,
right side components are similar.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
The following step(s) applies to:
3-door
1. Remove the rear quarter trim panel.
The following step(s) applies to:
5-door
2. Remove the B-pillar lower trim panel.
The following step(s) applies to:
All vehicles
3.
CAUTION:
Use a suitable trim tool.

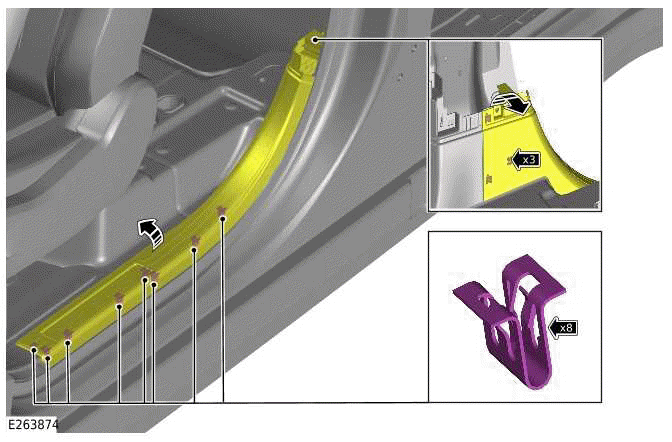

.png)
- Release the 11 clips.
- Reposition the front treadplate to get access to the electrical
connector.
4.

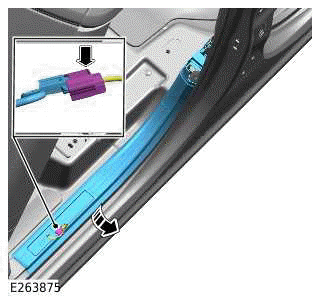

.png)
- Disconnect the electrical connector.
- Remove the front treadplate trim.
INSTALLATION
The following step(s) applies to:
All vehicles
1.
- Install the front treadplate trim.
- Connect the electrical connector.
2. Install the 11 clips.
The following step(s) applies to:
5-door
3. Install the B-pillar lower trim panel.
The following step(s) applies to:
3-door
4. Install the rear quarter trim panel.
