Land Rover Defender: Engine Cover - Ingenium I6 3.0l Petrol
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.

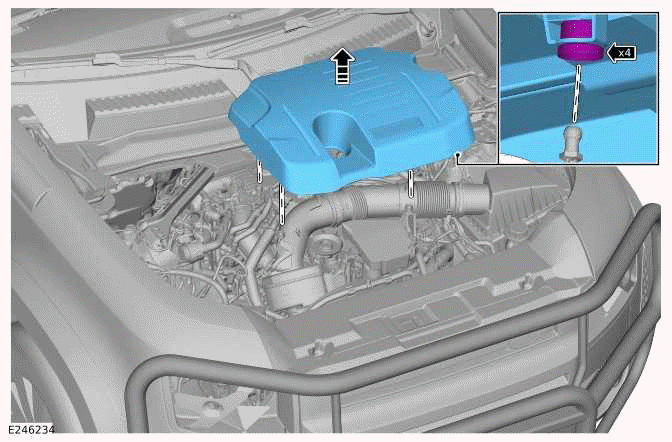

1.
.png)
- Release the 4 clips.
- Remove the engine cover.
INSTALLATION
1.
CAUTION:
Do not use excessive force to install the component.
- Install the engine cover.
