Land Rover Defender: Engine Cover - Ingenium I4 2.0l Diesel

Land Rover Defender 2020-2024 Service Manual / Body and Paint / Interior Trim and Ornamentation / Engine Cover - Ingenium I4 2.0l Diesel

REMOVAL AND INSTALLATION

REMOVAL

NOTES:

  1. This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  2. This procedure contains illustrations showing certain components removed to provide extra clarity.

1.

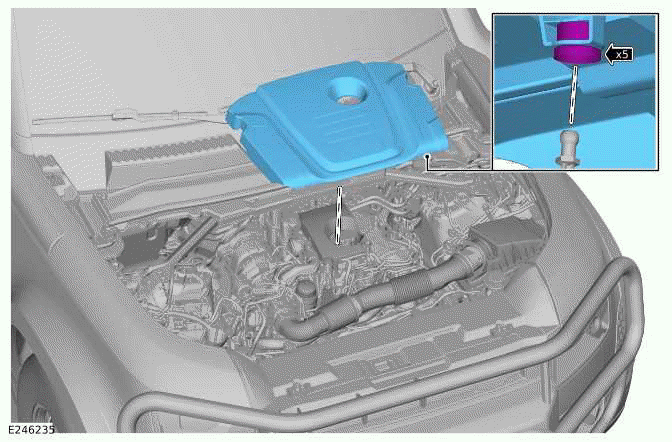

Engine Cover - Ingenium I4 2.0l Diesel

INSTALLATION

1.

CAUTION: Do not use excessive force to install the component.

Install the engine cover.
