Land Rover Defender: D-Pillar Trim Panel - 110
REMOVAL AND INSTALLATION
REMOVAL
CAUTION:
Make sure that excessive force is not used. Failure to follow this instruction
may result in damage to the
vehicle.
NOTE:
- This procedure contains illustrations for right side components, left
side components are similar.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1.
.png)

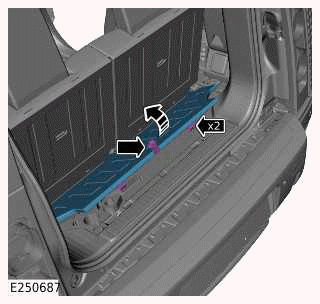

Remove the loadspace floor trim.
2.
.png)

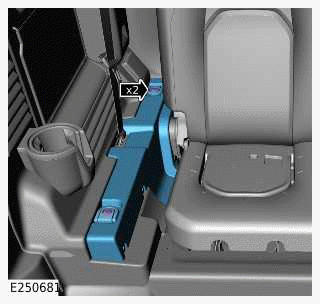

- Remove the 2 bolts.
- Remove the loadspace lower side trim.
3.
.png)

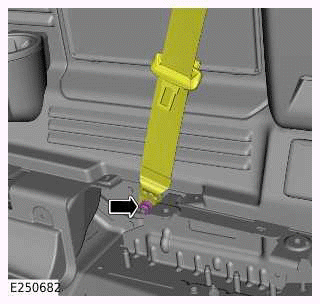

Remove the third row seatbelt anchor nut.
4.
.png)

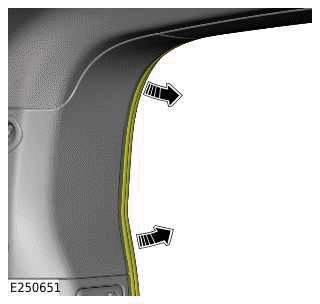

Release the tailgate weatherstrip.
5.
.png)

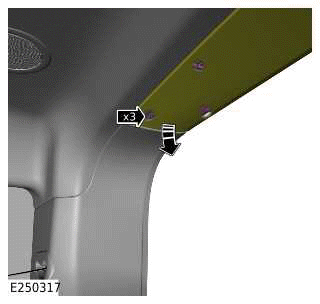

Release the loadspace upper trim panel.
6.
.png)

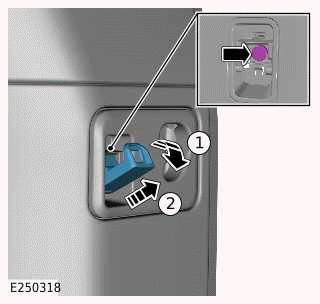

- Remove the coat hanger in the sequence shown.
- Remove the bolt.
7.
.png)

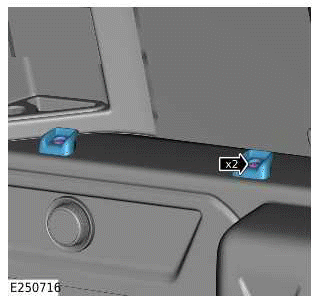

- Remove the 2 bolts.
- Remove the loadspace cover hangers.
8.
.png)

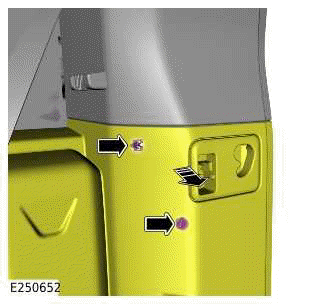

Release the loadspace side trim panel.
9.
.png)

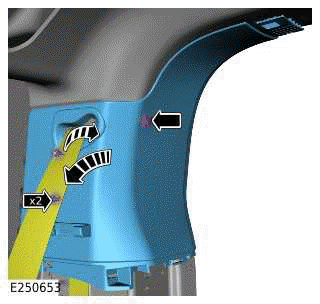

- Release the 3 clips.
- Remove the D-pillar trim panel.
INSTALLATION
1.
NOTE:
Make sure that the trim is correctly installed to the clips.
- Install the D-pillar trim panel.
- Install the 3 clips.
2. Install the loadspace side trim panel.
3.
- Install the loadspace cover hangers.
- Install and tighten the 2 bolts.
Torque: 1.7Nm
4.
- Install and tighten the coat hanger bolt.
Torque: 1.7Nm
- Install the coat hanger.
5.
- Install the loadspace upper trim panel.
- Install the 3 clips.
6.
CAUTION:
Make sure that the weatherstrip is not stretched on installation.
Reposition the tailgate weatherstrip into the correct location.
7.
- Reposition the third row seatbelt into the correct location.
- Install and tighten the third row seatbelt anchor nut.
Torque: 40Nm
8. Install the loadspace floor trim.
