Land Rover Defender: Climate Control System - General Information
Land Rover Defender 2020-2025 Service Manual / Electrical / Climate Control System / Climate Control System - General Information
SPECIFICATIONS

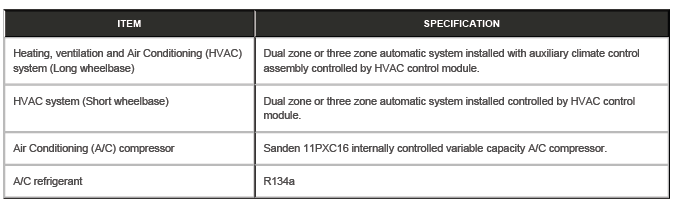

Climate Control
NOTE: ROW Vehicles.

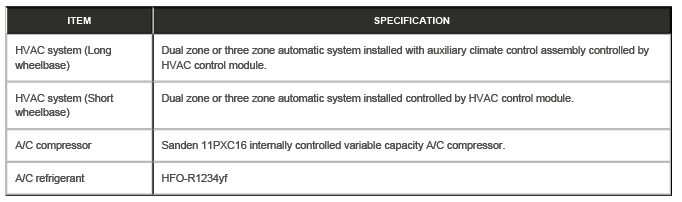

Climate Control
NOTE: NAS Vehicles.

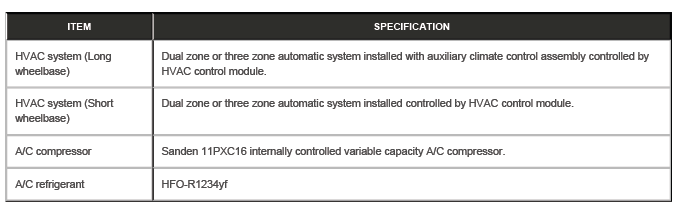

Climate Control
NOTE: EU Vehicles.

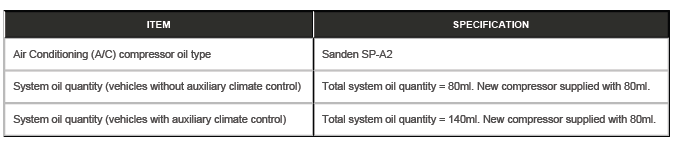

Lubricants, Fluids, Sealers and Adhesives
CAUTION: The HFO-1234yf and the R134a systems use the refrigerant oil (Sanden SP-A2).
NOTE: The HFO-1234yf is not compatible with any other refrigerant oils.

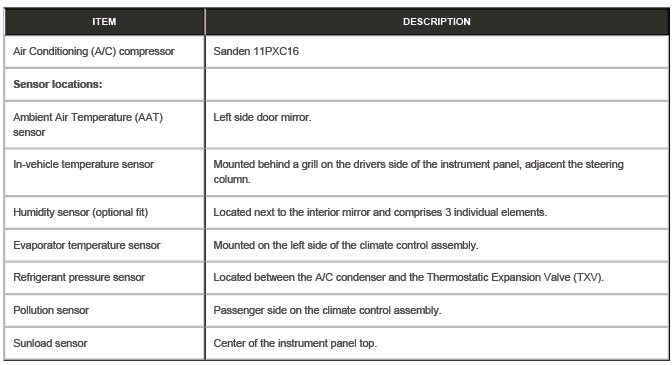

General Specification

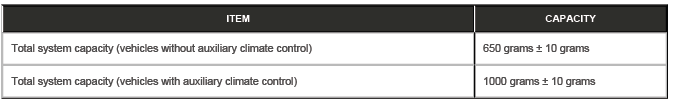

Capacities

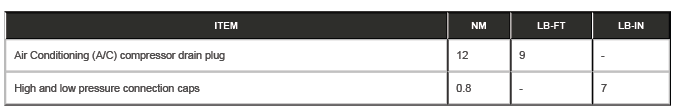

Torque Specifications
- Auxiliary Climate Control
- Cabin Comfort Climate Control System
- Climate Control System
- Air Conditioning Compressor Commissioning
