Land Rover Defender: Contrast Roof Finisher Decal
Land Rover Defender 2020-2025 Service Manual / Body and Paint / Exterior Trim and Ornamentation / Contrast Roof Finisher Decal
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right side components are similar.
1. Remove the rear quarter window.
2. Remove the windshield moulding.
3.
.png)

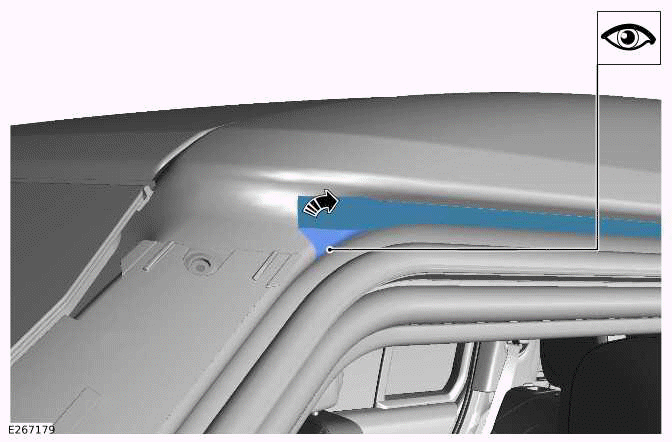

Inspect and note the installed position of the contrast roof finisher decal.
4.
CAUTIONS:
- Take extra care not to damage the front lower decal.
- Take extra care not to damage the surrounding paintwork.
.png)
- Remove the contrast roof finisher decal.
- Inspect the front lower decal and replace if required.
5.
.png)

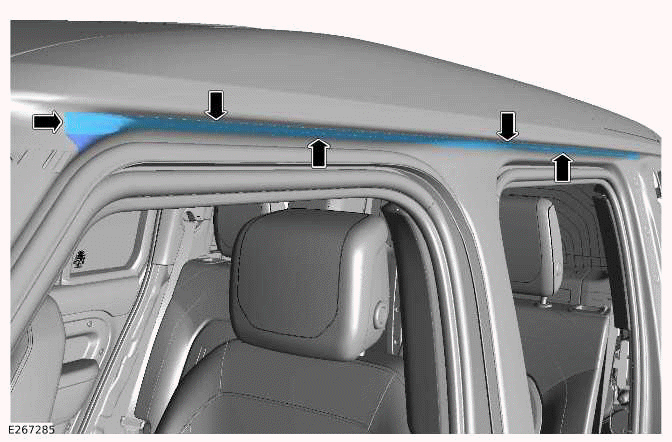

Using a suitable cleaner, clean the illustrated surface. Make sure the area is clean and free from dirt or dust.
INSTALLATION
1.
.png)

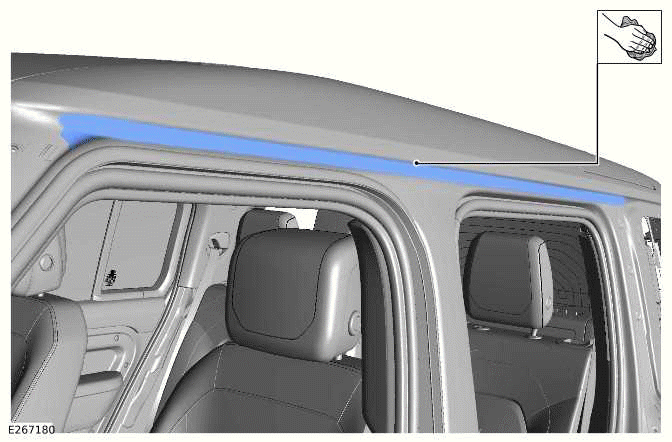

- Install the new contrast roof finisher decal to the position noted on removal.
- Make sure that a quarter of the contrast roof finisher decal is installed to the contrast roof.
2. Install the windshield moulding.
3. Install the rear quarter window.
