Land Rover Defender: Air Conditioning Compressor Commissioning

GENERAL PROCEDURES

ACTIVATION

CAUTION: Failure to follow this instruction may result in damage to the component.

1. Set the ignition to the on position, make sure the Air Conditioning (A/C) is in the off position.

2. Start the engine and allow to run for a minimum of 5 minutes.

3. Set the heater controls to 22ºC, with the fan speed set to 75%.

4. Switch on the A/C system.

5. Open all air vents in the instrument panel.

6. Run the A/C system for a minimum of 5 minutes, while the engine is still at idle speed.

7. Once this is achieved the compressor is stabilized, with the oil being distributed evenly throughout the system.

Air Conditioning System Recovery, Evacuation and Charging

GENERAL PROCEDURES

GENERAL EQUIPMENT

Air Conditioning System Recovery, Evacuation and Charging

REPAIR

WARNINGS:

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTES:

WARNING: Always follow the health and safety precautions when handling the refrigerant.

Refer to Air Conditioning (A/C) health and safety.

Refer to: Health and Safety Precautions.

EVACUATION

1.

Air Conditioning System Recovery, Evacuation and Charging

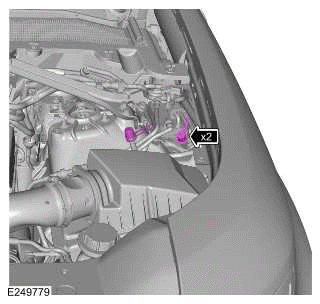

Remove the 2 covers from the 2 A/C charging ports.

2.

WARNING: Following the manufacturer's instructions, evacuate the Air Conditioning (A/C) system.

3. Disconnect the HP and LP hose from the 2 A/C charging ports.

CHARGING

1.

WARNING: Following the manufacturer's instructions, charging the Air Conditioning (A/C) system.

2.

3. Disconnect the HP and LP hose from the 2 A/C charging ports.

4. Install and tighten the 2 charging port covers.
