Land Rover Defender: Camshafts - Engine Set
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2 post lift.
2. Disconnect the startup battery ground cable.
3. Remove the camshaft carrier.
4.
CAUTION: Note the installed position of the component(s) prior to removal.
.png)

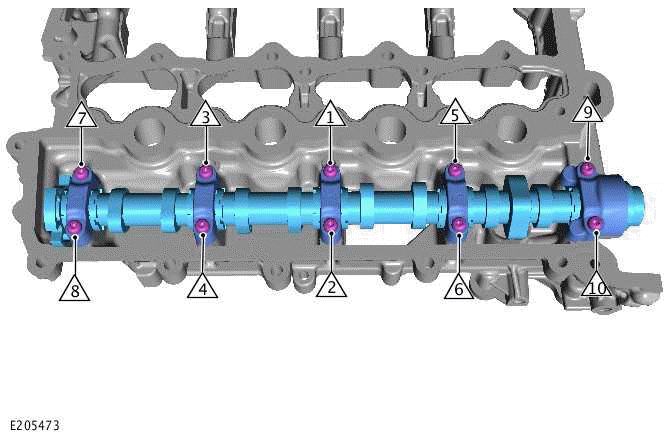

- Loosen the bolts 1 turn at a time in the illustrated sequence.
- Remove the 5 camshaft bearing caps.
- Remove the intake camshaft.
5.
CAUTION: Note the installed position of the component(s) prior to removal.
.png)

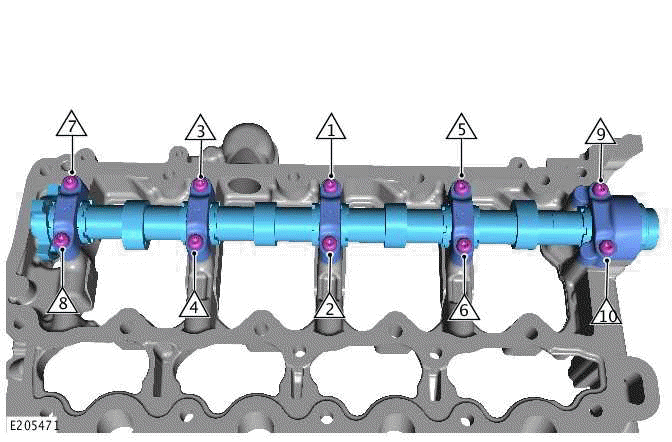

- Loosen the bolts 1 turn at a time in the illustrated sequence.
- Remove the 5 camshaft bearing caps.
- Remove the exhaust camshaft.
INSTALLATION
1.
.png)
- Lubricate the components with clean engine oil.
- Install the intake camshaft to the noted removal position.
- Install and tighten the 10 bolts in the illustrated sequence.
Torque: 11Nm
2.
.png)
- Lubricate the components with clean engine oil.
- Install the exhaust camshaft to the noted removal position.
- Install and tighten the 10 bolts in the illustrated sequence.
Torque: 11Nm
3. Install the camshaft carrier.
4. Connect the startup battery ground cable.
