Land Rover Defender: C-Pillar Upper Trim Panel - 110
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Interior Trim and Ornamentation / C-Pillar Upper Trim Panel - 110
REMOVAL AND INSTALLATION
REMOVAL
CAUTION: Make sure that excessive force is not used. Failure to follow this instruction may result in damage to the vehicle.
NOTE:
- This procedure contains illustrations for right side components, left side components are similar.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1.
.png)

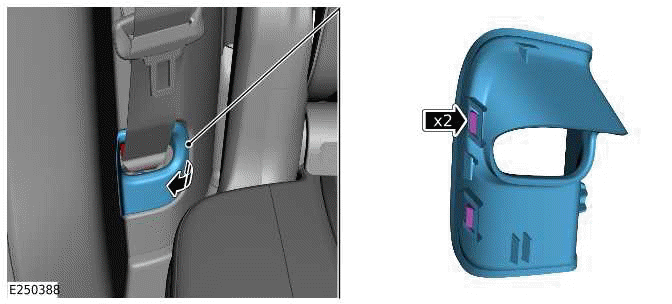

- Release the 2 clips.
- Remove the second row seatbelt anchor cover.
2.
.png)

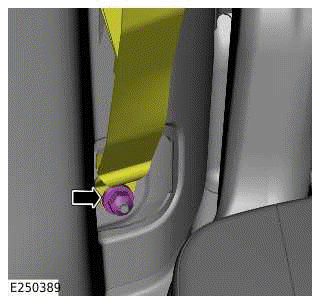

Remove the second row seatbelt anchor nut.
3.
.png)

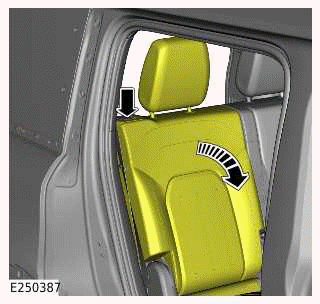

Move the second row seat to the fold position.
4.
.png)

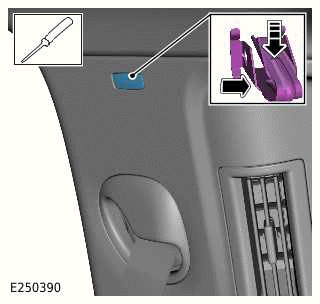

- Remove the trim.
- Release the clip.
5.
.png)

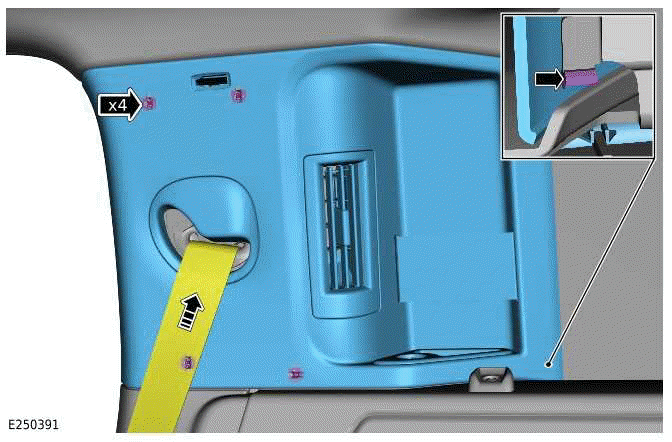

- Release the 5 clips.
- Remove the C-pillar upper trim panel.
- Release the seatbelt from the trim.
INSTALLATION
1.
NOTE: Make sure that the trim is correctly installed to the clips.
- Reposition the seatbelt through into the C-pillar trim panel.
- Install the C-pillar trim panel.
- Install the 5 clips.
- Install the trim.
2. Move the second row seat to its original position.
3. Install and tighten the second row side seatbelt anchor nut.
Torque: 40Nm
4. Install the second row seatbelt anchor cover.
