Land Rover Defender: Brake Caliper - Vehicles With: 365mm Brake Disc
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
.png)
PART(S)
.png)
REMOVAL
CAUTION:
Before the disconnection or removal of any components, make sure the area around
joint faces and
connections are clean. Plug any open connections to prevent contamination.
NOTES:
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations for left side components, right
side components are similar.
1.
2. Raise and support the vehicle on a suitable 2 post lift.
3. Remove the rear wheel and tire.
4.
NOTE:
RH side only.
.png)

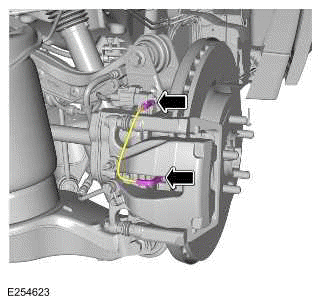

- Disconnect the brake pad wear sensor from the brake pad.
- Release the grommet.
5. Remove and discard the brake hose.
6.
.png)

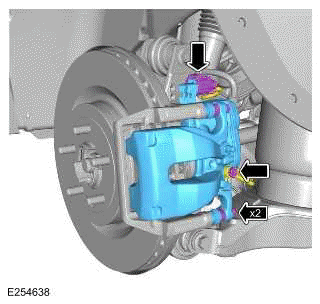

- Disconnect the electrical connector.
- Remove the 2 brake caliper slide pin bolts.
- Remove the brake caliper.
7.
NOTE:
Only do the following step(s) if a new component is to be installed.
.png)

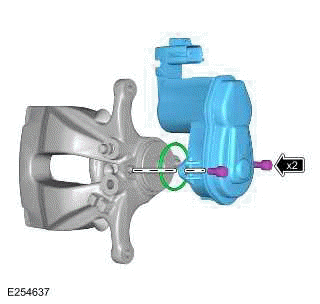

- Remove and discard the 2 bolts.
- Remove the EPB actuator from the brake caliper.
- Remove and discard the O-ring seal.
INSTALLATION
1.
NOTE:
Only do the following step(s) if the component was previously removed.
.png)
2.
- Install the brake caliper.
- Install and tighten the 2 brake caliper slide pin bolts.
Torque: 35Nm
- Connect the EPB electrical connector.
3. Install the rear brake hose.
4.
NOTE:
Right side only.
- Connect the brake pad wear sensor to the brake pad.
- Secure the brake pad wear sensor wiring harness.
5. Install the rear wheel and tire.
6.
