Land Rover Defender: Rear Disc Brake
SPECIFICATIONS

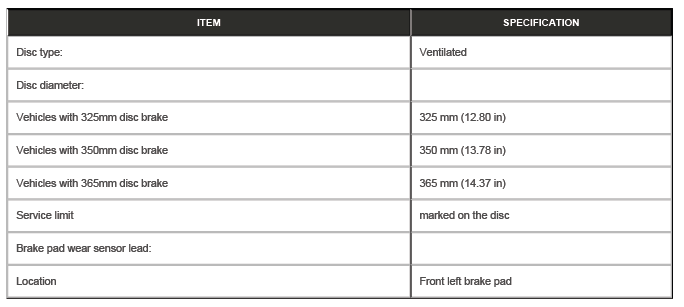

General Specification
.png)

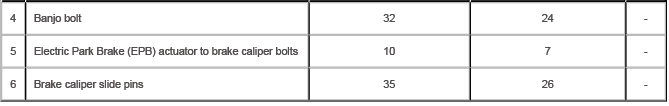

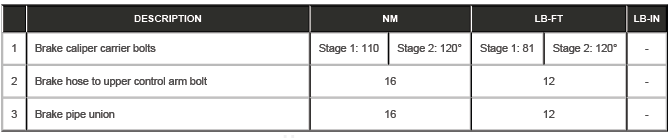

Torque Specification

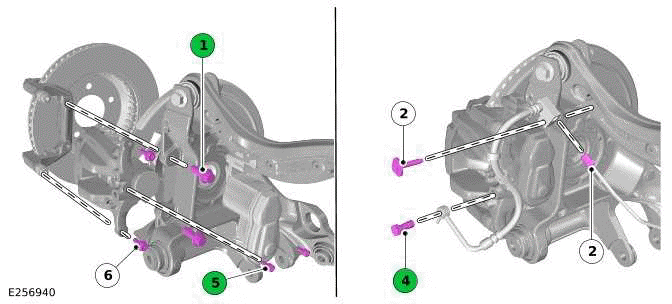

COMPONENT TORQUE LOCATION
.png)
NOTE:
Numbers with green background are a single use component.
.png)
.png)

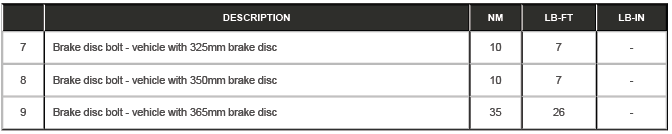

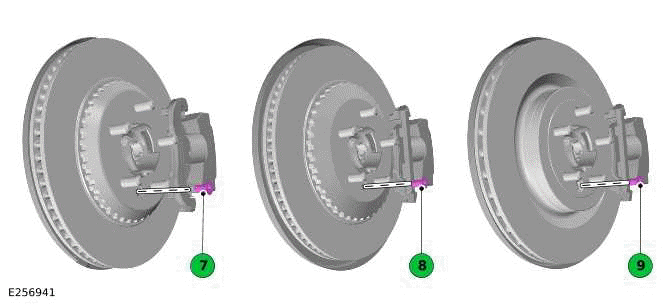

COMPONENT TORQUE LOCATION
.png)
NOTE:
Numbers with green background are a single use component.
.png)
DIAGNOSIS AND TESTING
PRINCIPLES OF OPERATION
For additional diagnosis and testing information, refer to the relevant
Diagnosis and Testing section in the workshop
manual.
READ NEXT:
REMOVAL AND INSTALLATION
GENERAL EQUIPMENT
PART(S)
REMOVAL
CAUTION:
Before the disconnection or removal of any components, make sure the area around
joint faces and
connections are clean. Plug any
REMOVAL AND INSTALLATION
MATERIALS
GENERAL EQUIPMENT
PART(S)
REMOVAL
WARNING:
If installing a new brake disc, install new brake pads.
CAUTION:
Brake discs must be renewed in pairs.
NOTE:
This pro
REMOVAL AND INSTALLATION
SPECIAL TOOL(S)
206-080
Brake caliper piston retractor tool
MATERIALS
GENERAL EQUIPMENT
REMOVAL
CAUTIONS:
Brake discs must be renewed in axle sets.
The brake pad wear se
