Land Rover Defender: Approach Lamp
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
1. Remove the door mirror cover.

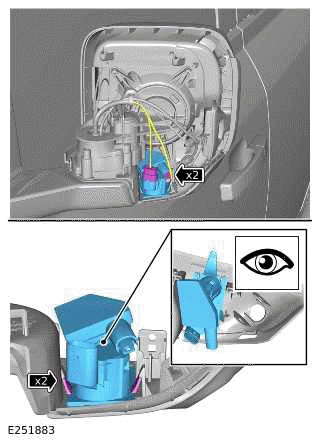

2.
.png)
- Disconnect the 2 electrical connectors.
- Release the 2 clips.
- Remove the assembly.

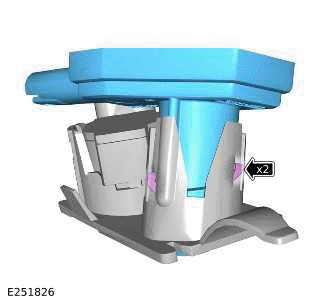

3.
.png)
- Release the 2 clips.
- Remove the approach lamp.
INSTALLATION
1.
.png)
- Install the approach lamp.
- Secure the 2 clips.
2.
.png)
- Install the assembly.
- Secure the 2 clips.
- Connect the 2 electrical connectors.
3. Install the door mirror cover.
