Land Rover Defender: A-Pillar Trim Panel
Land Rover Defender 2020-2026 Service Manual / Body and Paint / Interior Trim and Ornamentation / A-Pillar Trim Panel
REMOVAL AND INSTALLATION
REMOVAL
CAUTION: Make sure that excessive force is not used. Failure to follow this instruction may result in damage to the vehicle.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.

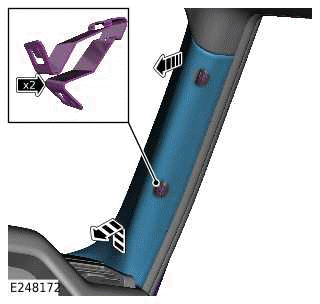

1.
.png)
- Release the 2 clips.
- Remove the A-pillar trim panel.
INSTALLATION
1.
NOTE: Make sure that the trim is correctly installed to the clips.
- Install the A-pillar trim panel.
- Install the 2 clips.
2.

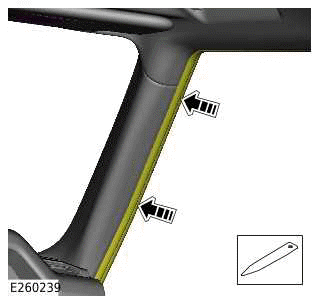

CAUTION: Make sure that the front door aperture seal is not stretched on installation.
.png)
Use the suitable tool to reposition the door aperture seal.
