Land Rover Defender: B-Pillar Lower Trim Panel
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Remove the B-pillar upper trim panel.
2.

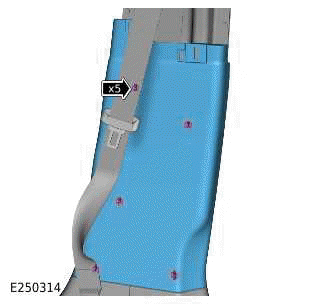

- Release the 5 clips.
- Remove the B-pillar lower trim panel.
INSTALLATION
1.
- Install the B-pillar lower trim panel.
- Make sure the 5 clips are correctly installed.
2. Install the B-pillar upper trim panel.
