Land Rover Defender: B-Pillar Upper Trim Panel - 110
REMOVAL AND INSTALLATION
REMOVAL
NOTE:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Disconnect the startup battery ground cable.
2.
.png)

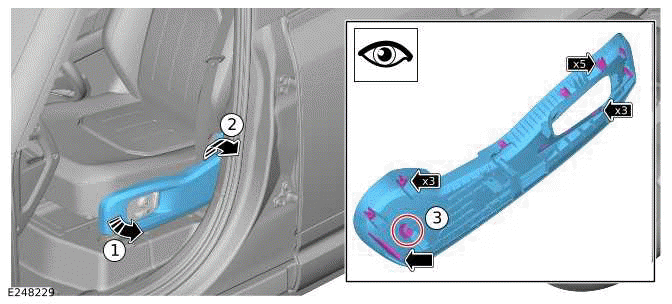

- Release the 12 clips as the sequence shown.
- Remove the front row seat side trim.
3.
.png)

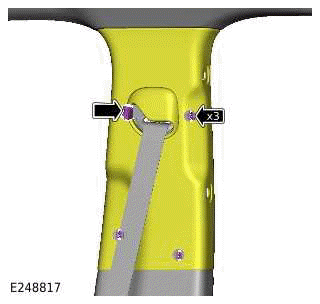

- Remove the bolt.
- Remove the seatbelt pretensioner cover.
4.
.png)

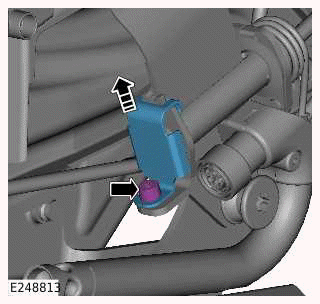

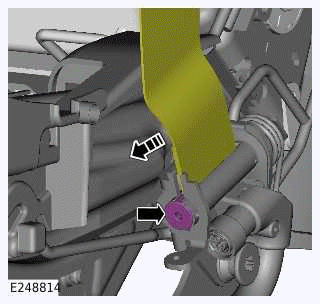

- Release the seatbelt pretensioner cotter pin.
- Release the front row seatbelt.
5.
.png)

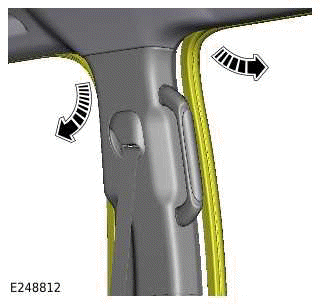

Release the front and rear door aperture seal for access.
6.
.png)

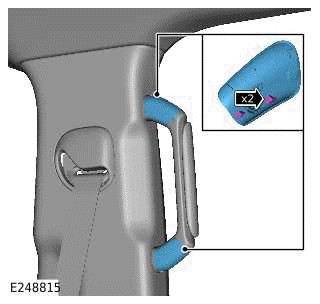

- Release the 2 covers from 2 clips.
- Remove the 2 passenger assist handle covers.
7.
.png)

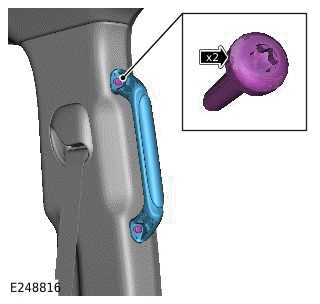

- Remove the 2 bolts.
- Remove the passenger assist handle.
8.
.png)
Release the 4 clips.
9.
.png)

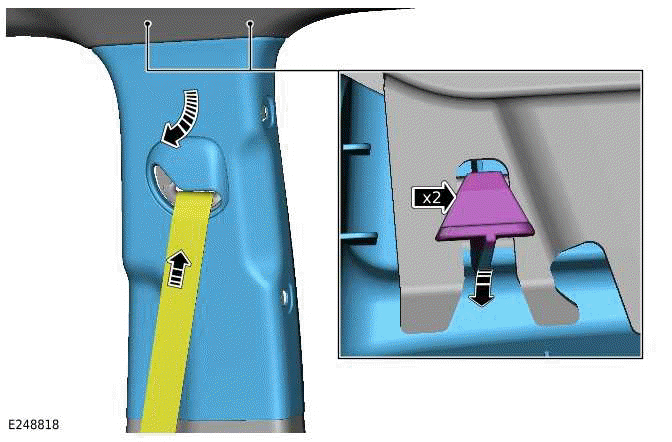

Remove the b-pillar trim panel from the 2 clips.
10.
NOTE:
Do not complete this step if component removed for access only
.png)

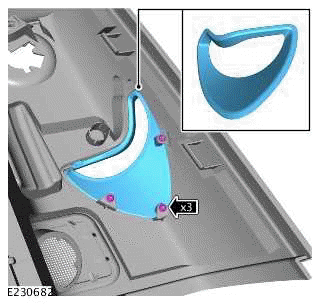

- Release the 3 clips.
- Remove the seatbelt upper anchor cover.
INSTALLATION
1.
NOTE:
Only complete this step if previously removed.
- Install the seatbelt upper anchor cover.
- Install the 3 clips.
2.
- Install the b-pillar trim panel.
- Install the 6 clips.
3.
- Install the passenger assist handle.
- Install and tighten the 2 bolts.
Torque: 7Nm
- Install the 2 passenger assist handle covers.
- Install the 2 upper cover clips.
- Install the 2 lower cover clips.
4. Reposition the door aperture seals in the correct location.
5.
- Reposition the front row seatbelt.
- Install the seatbelt pretensioner cotter pin.
6.
- Install the seatbelt pretensioner cover.
- Install and tighten the bolt.
Torque: 5Nm
7. Install the front row seat trim cover to the 12 clips.
8. Connect the startup battery ground cable.
