Land Rover Defender: Windshield Washer Pump
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2-post lift.
2. Remove the front right wheel arch liner.
3.
NOTE:
Be prepared to collect escaping fluids.
.png)

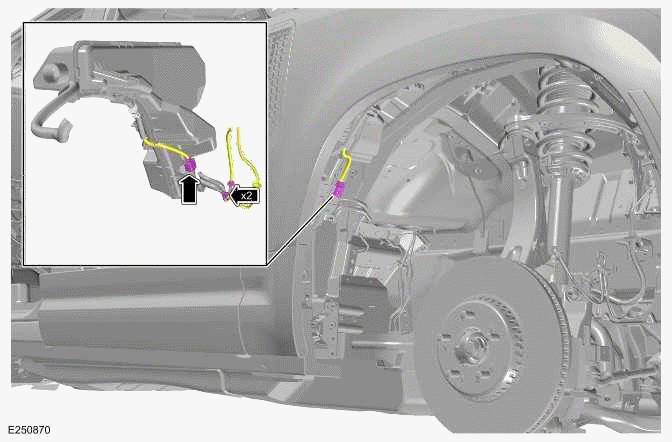

- Disconnect the electrical connector from the windshield washer pump.
- Disconnect the 2 windshield washer jet hoses from the windshield washer
pump.
4.
NOTE:
Be prepared to collect escaping fluids.
.png)

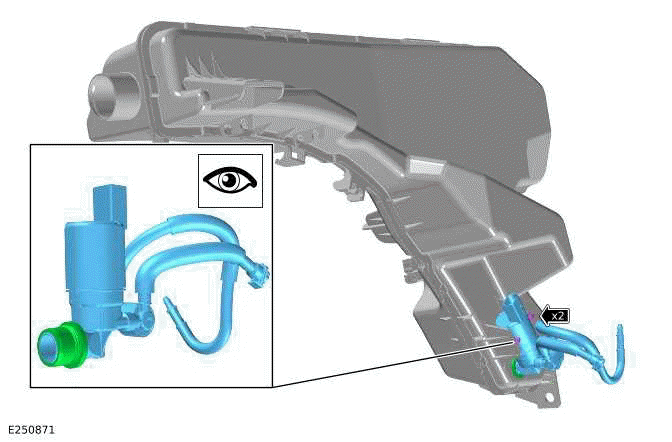

- Release windshield washer pump from the 2 clips.
- Remove the windshield washer pump from the windshield washer fluid
reservoir.
INSTALLATION
1.
CAUTION:
The seal is to be reused unless damaged.
- Install the windshield washer pump into the windshield washer fluid
reservoir.
- Connect the electrical connector to the windshield washer pump.
- Connect the 2 windshield washer jet hoses to the windshield washer pump.
2. Install the front right wheel arch liner.
