Land Rover Defender: Rear Window Wiper Motor
Land Rover Defender 2020-2025 Service Manual / Body and Paint / Wipers and Washers / Rear Window Wiper Motor
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
1. Remove the rear window wiper arm.
2. Remove the tailgate trim panel.
3.
NOTE: Be prepared to collect the escaping fluid.
.png)

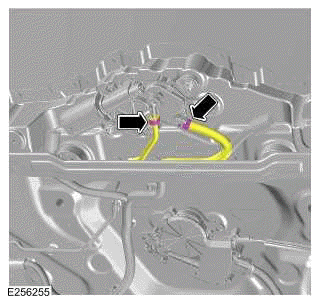

- Disconnect the rear window washer jet hose from the rear window wiper motor.
- Disconnect the electrical connector from the rear window wiper motor.
4.
.png)

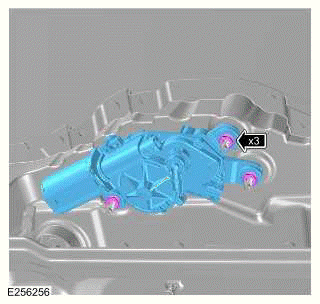

- Remove the 3 nuts.
- Remove the rear window wiper motor.
INSTALLATION
1.
- Install the rear window wiper motor.
- Install and tighten the 3 nuts.
Torque: 8Nm
2.
- Connect the electrical connector to the rear window wiper motor.
- Connect the rear washer hose to the rear window wiper motor.
3. Install the tailgate trim panel.
4. Install the rear window wiper arm.
