Land Rover Defender: Windshield Wiper Motor and Linkage Assembly
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Remove the cowl panel.
2.

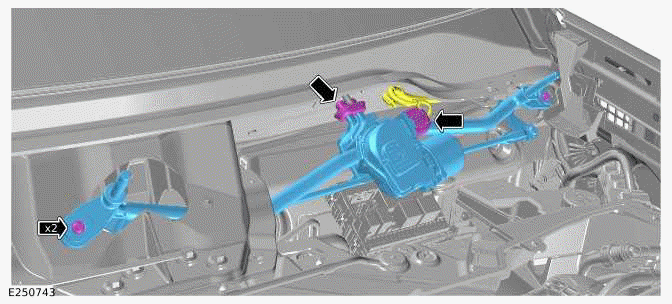

.png)
- Disconnect the electrical connector.
- Remove the 2 bolts.
- Release the windshield wiper motor and linkage assembly from the rubber.
INSTALLATION
1.
- Install the windshield wiper motor and linkage assembly.
- Install and tighten the 2 bolts.
Torque: 8Nm
- Connect the electrical connector to the windshield wiper motor and
linkage assembly.
2. Install the cowl panel.
