Land Rover Defender: Windshield Washer Reservoir
REMOVAL AND INSTALLATION
REMOVAL
NOTES:
- This procedure contains some variation in the illustrations depending
on the vehicle specification, but the
essential information is always correct.
- This procedure contains illustrations showing certain components
removed to provide extra clarity.
1. Raise and support the vehicle on a suitable 2-post lift.
2. Remove the front right wheel arch liner.
3.
.png)

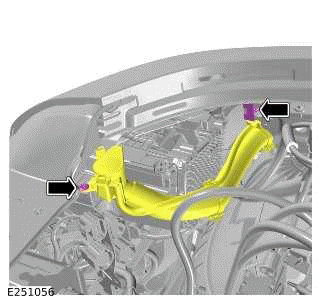

Release the 2 clips.
4.
NOTE:
Be prepared to collect escaping fluids.
.png)

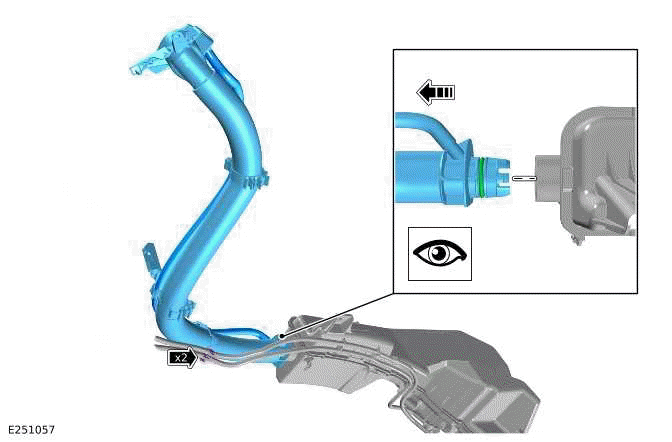

- Release the 2 headlamp washer hoses from the windshield washer filler
neck.
- Remove the windshield washer filler neck from the windshield washer
reservoir.
5.
.png)

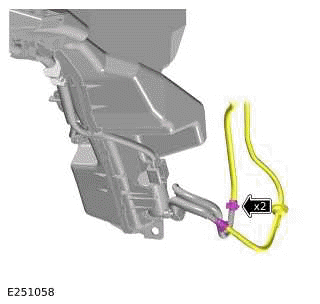

Disconnect the 2 windshield washer hoses.
6.
.png)

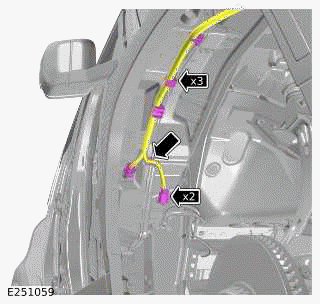

- Disconnect the 2 electrical connectors.
- Release the wiring harness from the 4 clips.
7.
.png)

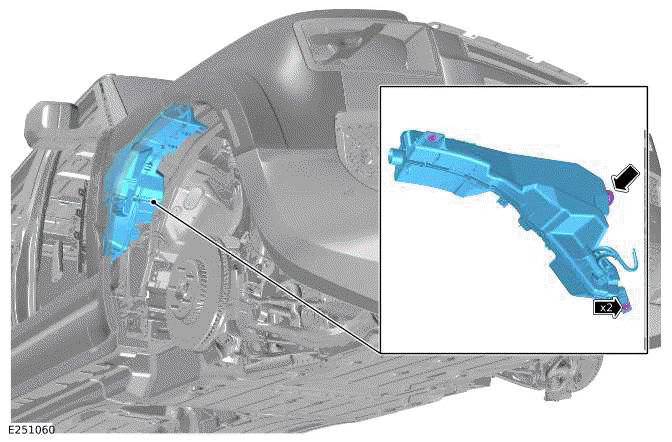

- Remove the 2 bolts.
- Remove the windshield washer reservoir.
8.
CAUTION:
Be prepared to collect escaping fluids.
NOTE:
Do not disassemble further if the component is removed for access only.
.png)

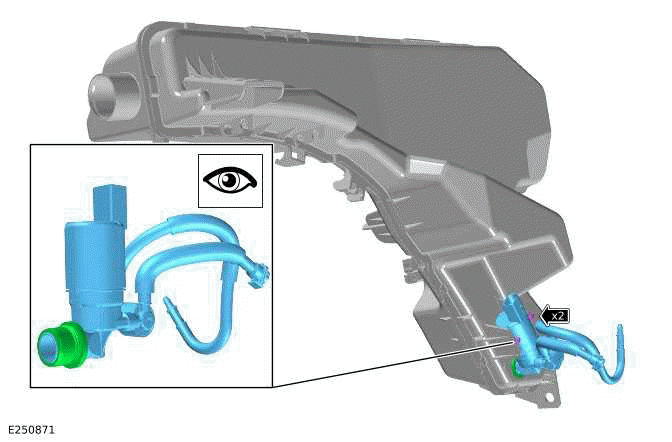

Remove the windshield washer pump.
9.
CAUTION:
Be prepared to collect escaping fluids.
.png)

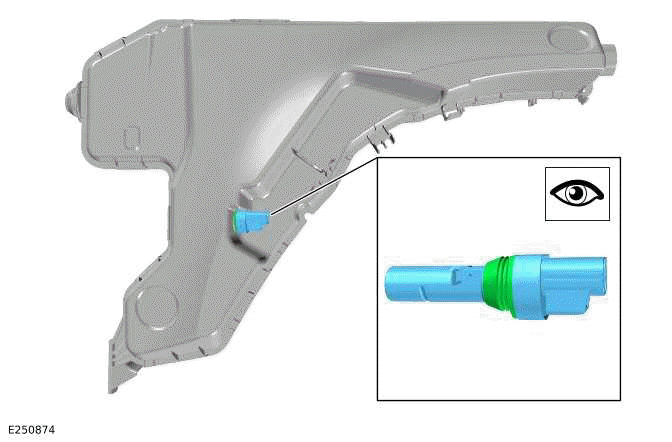

Remove the windshield washer fluid level sensor.
10.
.png)

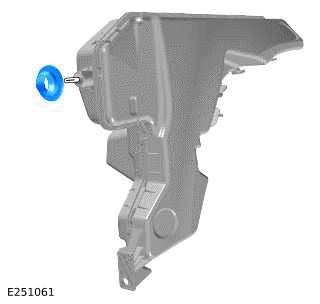

Remove the grommet.
INSTALLATION
1.
CAUTION:
The seal is to be reused unless damaged.
Install the windshield washer level sensor.
2.
CAUTION:
The seal is to be reused unless damaged.
- Install the windshield washer pump.
- Connect the 2 windshield washer hoses to the windshield washer pump.
3.
CAUTION:
Make sure that the components are correctly aligned.
- Install the grommet
- Install the windshield washer reservoir.
- Install and tighten the 2 bolts.
Torque: 8Nm
4.
- Connect the 2 electrical connectors.
- Secure the wiring harness to the 4 clips.
5.
- Install the windshield washer reservoir filler neck into the windshield
washer reservoir.
- Secure the 2 windshield washer filler neck clips.
- Secure the 2 headlamp washer hoses to the 2 clips.
6. Install the front right wheel arch liner.
