Land Rover Defender: Wheel Knuckle

REMOVAL AND INSTALLATION

SPECIAL TOOL(S)

Wheel Knuckle

204-506/1

Remover/Installer, Halfshaft

Wheel Knuckle

204-506/2

Remover/Installer, Halfshaft Spacer

Wheel Knuckle

204-506/3

Remover/Installer, Halfshaft Screw Thread

Wheel Knuckle

204-506/5

Retainers, Halfshaft tools

GENERAL EQUIPMENT

Wheel Knuckle

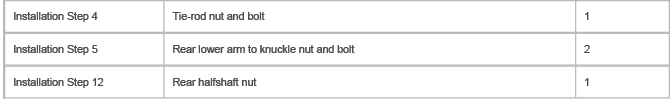

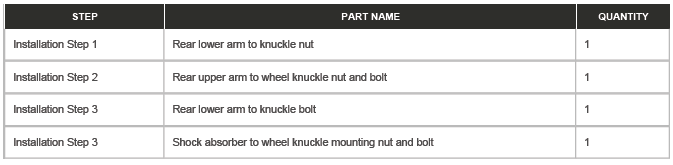

PART(S)

Wheel Knuckle

Wheel Knuckle

REMOVAL

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.

NOTES:

1. Raise and support the vehicle on a suitable 2-post lift.

2. Use the Jaguar Land Rover (JLR) approved diagnostic system, to depressurize the air spring at the relevant corner.

3. Remove the rear wheel and tire assembly.

4.

CAUTION: Do not use air tools to remove the halfshaft nut.

NOTE: Retain the nut for the installation procedure.

Wheel Knuckle

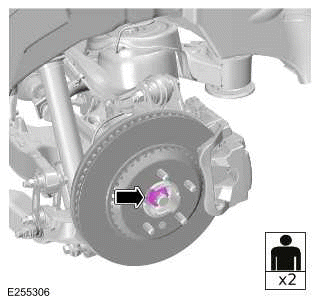

Remove the rear halfshaft nut.

5.

Wheel Knuckle

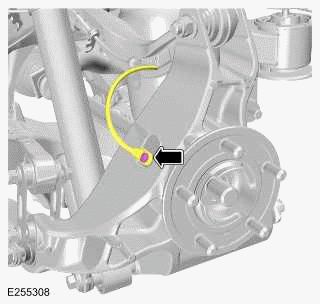

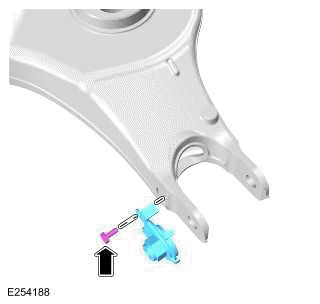

Release the height sensor from the rear lower control arm.

6.

Remove the rear brake disc.

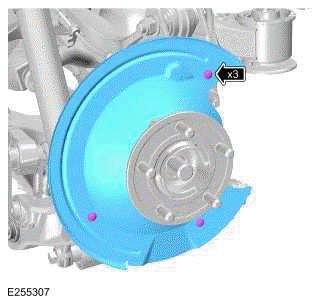

7.

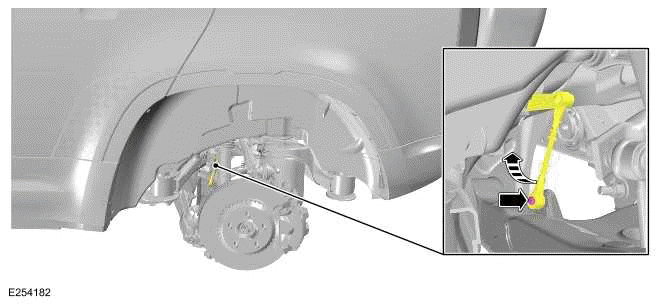

Wheel Knuckle

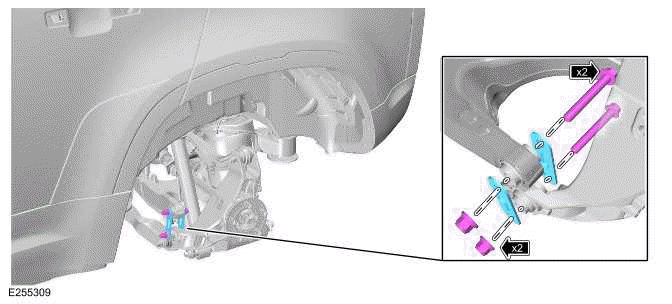

8.

Wheel Knuckle

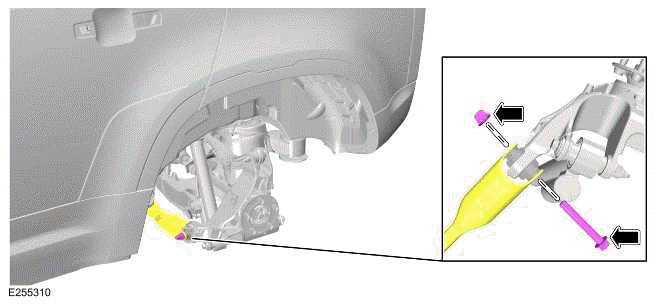

9.

Wheel Knuckle

10.

Wheel Knuckle

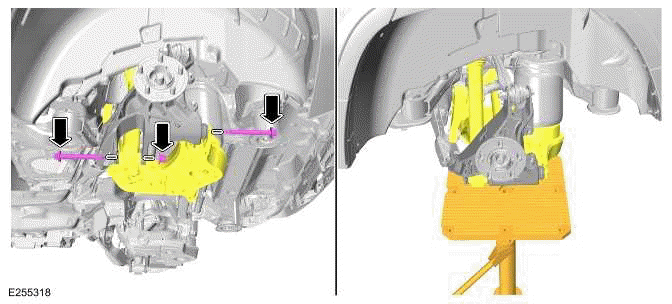

11.

CAUTION: To prevent the wheel knuckle falling outwards and disconnection of the halfshaft inner joint, support the wheel knuckle.

Wheel Knuckle

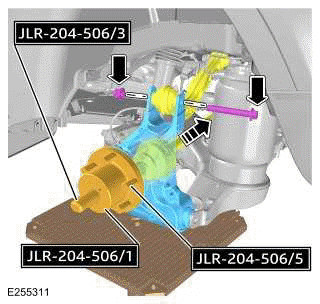

12.

CAUTION: Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.

Wheel Knuckle

13.

Wheel Knuckle

INSTALLATION

1.

2.

3.

Wheel Knuckle

4.

5.

Wheel Knuckle

6.

7.

8. Install the rear brake disc.

9. Secure the height sensor link to the rear lower arm.

10.

CAUTION: Do not use air tools to install the half shaft nut.

NOTE: Apply the brake pedal during the installation of the halfshaft nut.

Install and tighten the old halfshaft nut.

Torque: 175Nm

11.

CAUTION: Do not use air tools to remove the half shaft nut.

NOTE: Apply the brake pedal during the removal of the halfshaft nut.

Remove the old halfshaft nut.

12.

CAUTION: Do not use air tools to install the half shaft nut.

NOTE: Apply the brake pedal during the installation of the halfshaft nut.

Install and tighten the new halfshaft nut.

Renew Part: Rear halfshaft nut Quantity: 1.

Torque

13. Remove the rear wheel and tire assembly.

14. Use the Jaguar Land Rover (JLR) approved diagnostic system, to pressurise the air suspension.

15. Use the JLR approved diagnostic system, to calibrate the suspension ride height.
