Land Rover Defender: Warning Devices - Control Diagram

Land Rover Defender 2020-2025 Service Manual / Electrical / Instrumentation and Warning Systems / Warning Devices / Warning Devices - Control Diagram

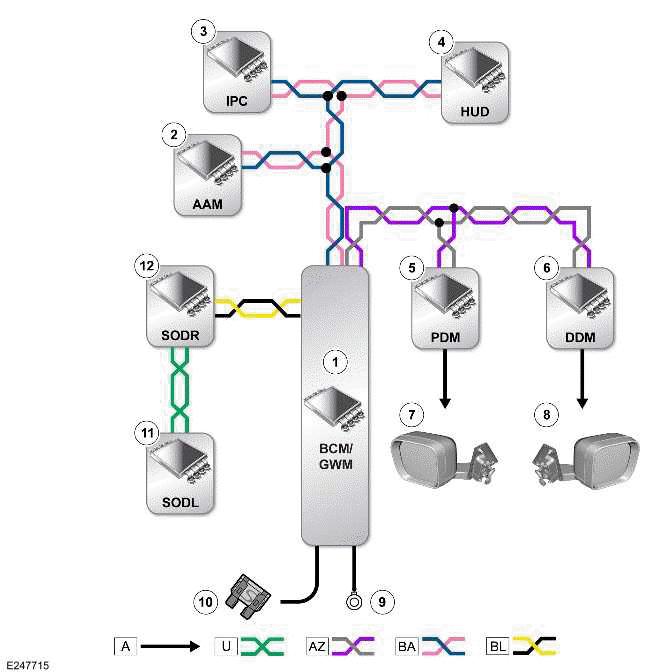

CONTROL DIAGRAM - 1 OF 6 - BLIND SPOT ASSIST

Warning Devices

A = HARDWIRED: U = PRIVATE CAN BUS: AZ = HS CAN BODY SYSTEMS BUS: BA= HS CAN HUMAN MACHINE INTERFACE (HMI) SYSTEMS BUS: BL = HS CAN UN SYSTEMS BUS.

  1. BCM/ GWM
  2. AAM
  3. IPC
  4. HUD
  5. PDM
  6. DDM
  7. Approaching vehicle lamp - Left door mirror
  8. Approaching vehicle lamp - Right door mirror
  9. Ground
  10. Power supply
  11. SODL
  12. SODR

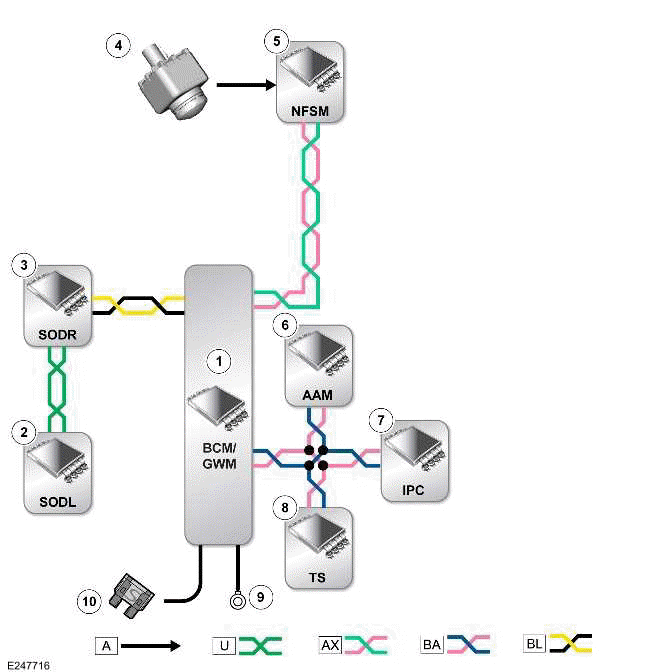

CONTROL DIAGRAM - 2 OF 6 - REVERSE TRAFFIC DETECTION

Warning Devices

A = HARDWIRED: U = PRIVATE CAN BUS: AX = FLEXRAY: BA= HS CAN HMI SYSTEMS BUS: BL = HS CAN UN SYSTEMS BUS.

  1. BCM/ GWM
  2. SODL
  3. SODR
  4. Rear view camera
  5. NFSM
  6. AAM
  7. IPC
  8. TS
  9. Ground
  10. Power supply

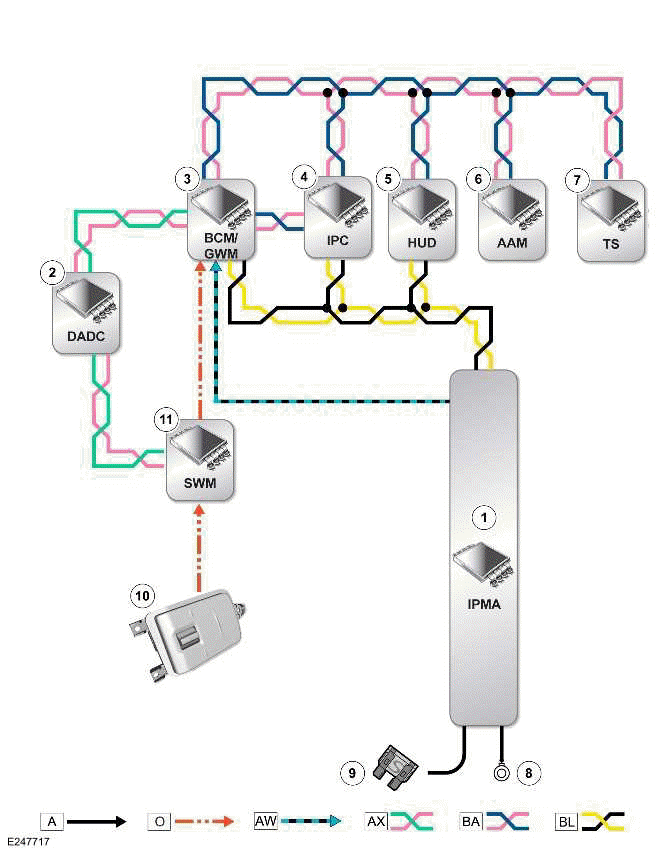

CONTROL DIAGRAM - 3 OF 6 - LANE KEEP ASSIST

Warning Devices

A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN): AW = ETHERNET: AX = FLEXRAY: BA= HS CAN HMI SYSTEMS BUS: BL = HS CAN UN SYSTEMS BUS.

  1. IPMA
  2. DADC
  3. BCM/ GWM
  4. IPC
  5. HUD
  6. AAM
  7. TS
  8. Ground
  9. Power supply
  10. Steering wheel switch
  11. SWM

CONTROL DIAGRAM - 4 OF 6 - TRAFFIC SIGN RECOGNITION

Warning Devices

A = HARDWIRED: AW = ETHERNET: AX = FLEXRAY: BA= HS CAN HMI SYSTEMS BUS: BL = HS CAN UN SYSTEMS BUS.

  1. IPMA
  2. BCM/ GWM
  3. DADC
  4. IGM / ICCM
  5. HUD
  6. IPC
  7. Ground
  8. Power supply

CONTROL DIAGRAM - 5 OF 6 - DRIVER CONDITION MONITOR

Warning Devices

A = HARDWIRED: O = LIN: AX = FLEXRAY: AZ = HS CAN BODY SYSTEMS BUS: BA= HS CAN HMI SYSTEMS BUS.

  1. BCM/ GWM
  2. DSM
  3. TS
  4. Steering wheel switch - Left
  5. IPC
  6. AAM
  7. DADC
  8. Steering Angle Sensor Control Module (SASM)
  9. PSCM
  10. ABS
  11. TCM
  12. PCM
  13. RCM
  14. NFSM
  15. Ground
  16. Power supply
  17. Steering wheel switch - Right
  18. SWM

CONTROL DIAGRAM - 6 OF 6 - CLEAR EXIT DETECTION SYSTEM

Warning Devices

A = HARDWIRED: O = LIN: U = PRIVATE CAN BUS: AZ = HS CAN BODY SYSTEMS BUS: BL = HS CAN UN SYSTEMS BUS.

  1. BCM/ GWM
  2. SODL
  3. SODR
  4. Door ajar switch - Rear left door
  5. PRDM
  6. CEDS LED indicator - Rear left
  7. Door ajar switch - Rear right door
  8. DRDM
  9. CEDS LED indicator - Rear left
  10. Ground
  11. Power supply
  12. Door ajar switch - Passenger door
  13. PDM
  14. CEDS LED indicator - Passenger door
  15. CEDS LED indicator - Driver door
  16. DDM
  17. Door ajar switch - Driver door
